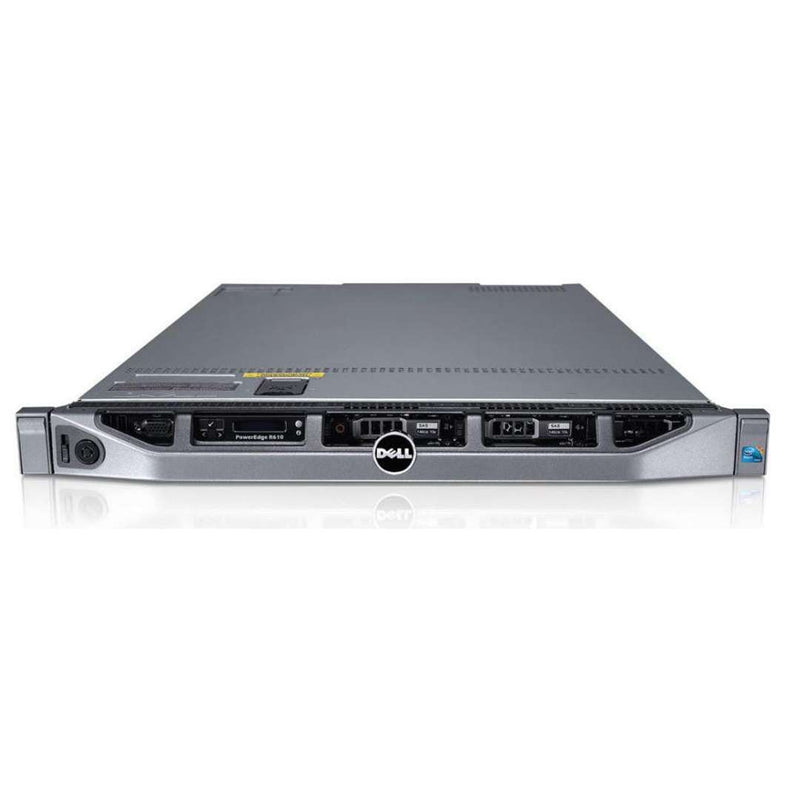

Dell PowerEdge R610 Rack Server Chassis (6x2.5")


Price: Request a Quote

Brand:
MPN:
DPE-R610-6x2.5-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

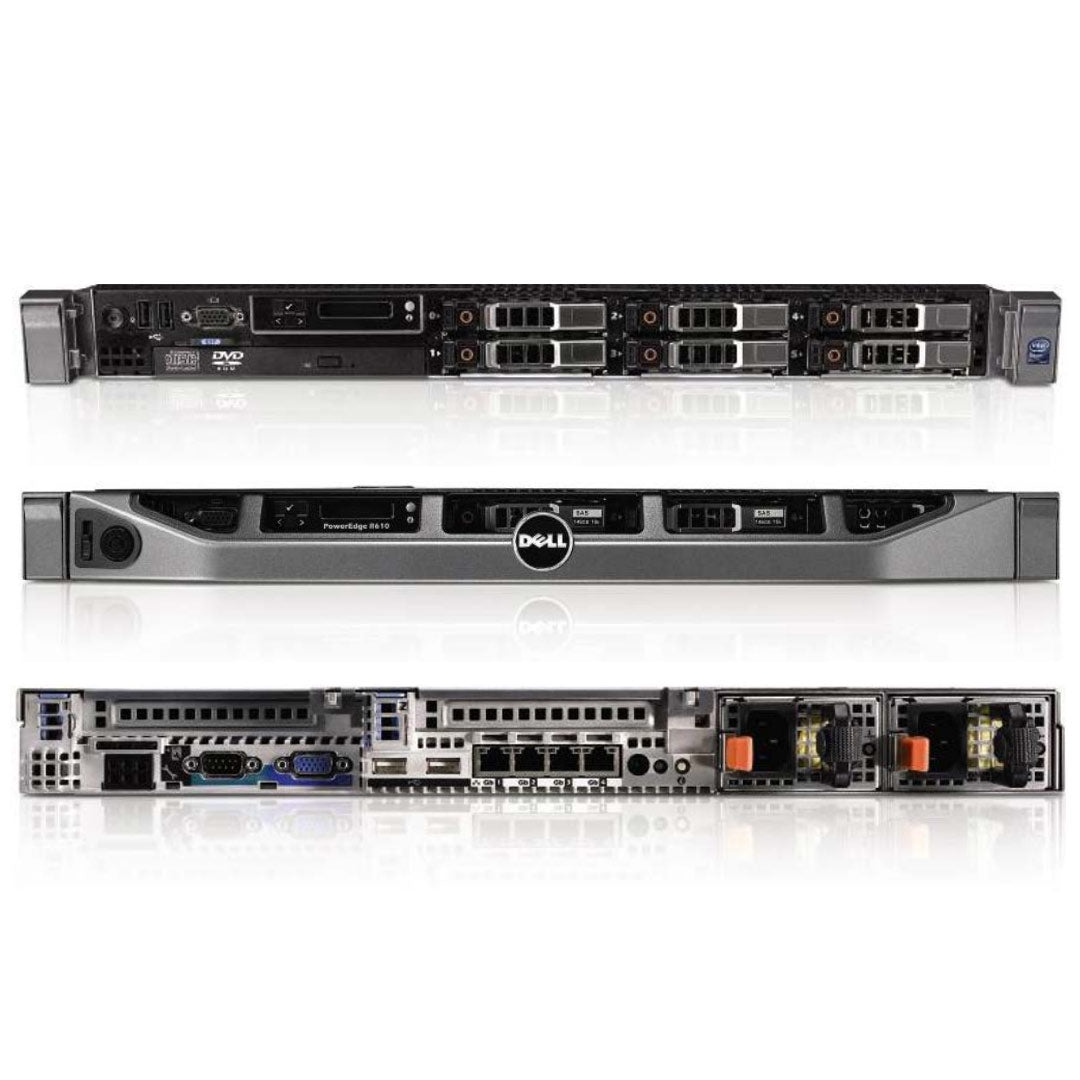

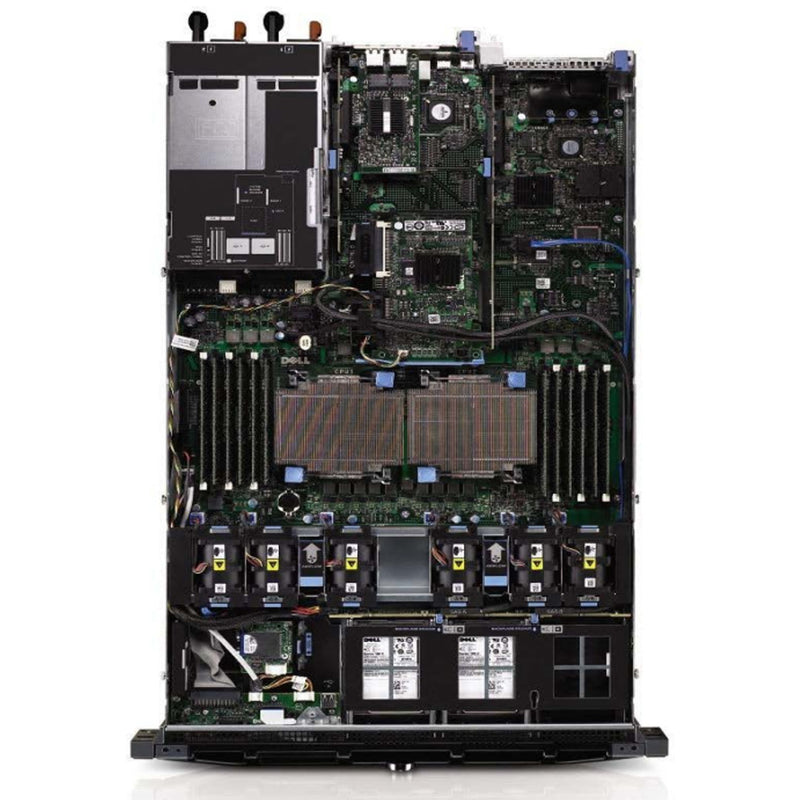

Dell PowerEdge R610 Rack Server Chassis (6x2.5")

Quick Specs

Form Factor:

1U rack server

Processor | Max: 4-6 Cores

2 x Intel Xeon 5500 or 5600

Memory | Max: 192GB

12 ECC DDR3 UDIMM/RDIMM 1333Mhz

Storage | Max: 12TB

6 SFF SAS/NL-SAS/SATA (HDD/SSD)

RAID Controller:

H200, H700, H800, 6Gb/s SAS HBA

NIC/LOM:

Broadcom® BCM5709C 4 x iSCSI TOE

Remote Management:

iDRAC6

PCIe Slots:

2x PCIe 2.0 + 1 Storage Slot

GPU:

None

The Dell PowerEdge R610 offers simplified management, purposeful design, and energy efficiency combined in a rack server that can help you better manage your enterprise.

Strong IT Foundation

The Dell PowerEdge R610 is a key building block for today’s data center. Designed for versatility and high performance, it provides many of the virtualization, system management, and energy efficiency features you need now and the scalability necessary to change as your business grows. This general purpose Intel processor-based 2-socket 1U server is ideal for corporate data centers and remote sites that require a dense, highly available single- or dual-processor server at an excellent value.


Purposeful Design

The PowerEdge R610 follows the 11th generation PowerEdge portfolio specifications and features the same system design commonality and reliability true to the entire portfolio. All 11th generation servers are designed to make the experience easier. We put all external ports, power supplies, LCD screens, and LED lights in the same location for familiar experience as well as easy installation and deployment.

Robust, metal hard drive carriers and organized cabling are designed to help improve component access and airflow across the server. The PowerEdge R610 provides an interactive LCD screen or LED display positioned on the front of the server for ease of monitoring and troubleshooting condition of the server.


Enhanced Virtualization

Featuring Intel Xeon processor-based architecture, embedded hypervisors, and expanded memory footprint and I/O, the Dell PowerEdge R610 delivers exceptional overall system performance and significant virtual machine-per-server capacity versus the previous generation. With optional factory-integrated virtualization capabilities, you get tailored solutions—built with the latest technologies from Dell and our trusted partners—which allow you to streamline deployment and simplify virtual infrastructures. Choose your hypervisor from market leaders such as VMware, Citrix, and Microsoft, and enable virtualization with a few mouse clicks.


Customer Inspired Design

Dell’s servers offer world class system and image commonality and customer inspired usability. The Dell™ PowerEdge™ R610 takes advantage of Dell’s system commonality; When IT managers learn one system, they have learned the logic required to manage Dell’s next generation servers. The logical layout of components and power supply placement enables a simple and straight forward installation and a simplified redeployment experience in the future.

In addition, Dell’s latest PowerEdge servers provide a graphical and interactive LCD for system health monitoring, alerting and control of basic management configuration right in the front of the server. Customers have an AC power meter and ambient temperature thermometer built into the server which they can monitor on this display without any software tools.

Embedded NICs/LAN on Motherboard (LOM)
Broadcom® 5709C dual-port LAN controllers

The PowerEdge R610 has embedded Gigabit Ethernet Controllers with TCP Offload Engine (TOE) support. Two embedded Broadcom® 5709C dual-port LAN controllers are on the R610 planar as independent Gigabit Ethernet interface devices. The following information details the features of the LAN devices:

  • x4 PCI Express Gen2 capable interface (controller operated at Gen1 speed)
  • Integrated MAC and PHY 3072x18 Byte context memory
  • 64 KB receive buffer
  • TOE (TCP Offload Engine)
  • iSCSI controller (enabled through an optional hardware key)
  • RDMA controller (RNIC) (enabled post-RTS through an optional hardware key)
  • NC-SI (Network Controller-Sideband Interface) connection for manageability
  • Wake-On-LAN (WOL)
  • PXE 2.0 remote boot
  • iSCSI boot
  • IPv4 and IPv6 support
  • Bare metal deployment support
PCI Slots Overview

The R610 has two PCI Express risers. The two PCIe risers provide two PCI Express expansion slots, which are detailed as follows:

  • Two x8 PCIe Gen2 slots connected to the IOH
  • One x4 PCIe Gen1 slot for dedicated for the integrated storage controller card on the Riser 1 connected to the ICH9
  • Support for full-height, half-length (6.6” max length) PCIe cards

To ensure proper cooling, only one of the two expansion cards can have a power consumption of greater than 15W (up to 25W maximum), not including the integrated storage controller.

The system does not support hot-plug or hot-removal of PCI Express cards.

Storage Overview
The PowerEdge R610 Drives

The PowerEdge R610 has a single six-drive backplane that supports 2.5” drives. There are six hotswap capable Serial Attached SCSI (SAS) or Serial ATA (SATA) slots with two LED indicators per slot, two Mini-SAS cable connectors for connecting the backplane to the integrated storage controller, and a 14-pin power connector. Mixing SAS and SATA drives is supported.

  • Hard drives require the 2.5” hard-drive carrier
  • Up to six SAS or up to six SATA drives are supported
  • For SAS and SATA mixing:
    • Two SAS and up to four SATA drives are allowed
    • Two SAS hard drives must be installed in slots 0 and 1
  • Limited SAS and SSD mixing is supported
  • SSDs require the PERC 6/i or PERC H700 integrated storage controller card and cannot be mixed with any other type of hard drive

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeatureTechnical specification
Form Factor1U rack
ProcessorsQuad-core or six-core Intel® Xeon® processors 5500 and 5600 series
Processor Sockets2
Front Side Bus or HyperTransportIntel® QuickPath Interconnect (QPI)
Cache4MB and 8MB
ChipsetIntel® 5520
Memory1Up to 192GB (12 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 up to 1333MHz
I/O Slots2 PCIe G2 slots + 1 storage slot:
Two x8 slots
One storage x4 slot
RAID ControllerInternal:
PERC H200 (6Gb/s)
PERC H700 (6Gb/s) with 512MB battery-backed cache;
512MB, 1GB Non-Volatile battery-backed cache
SAS 6/iR
PERC 6/i with 256MB battery-backed cache
External:
PERC H800 (6Gb/s) with 512MB of battery-backed cache;
512MB, 1GB Non-Volatile battery-backed cache
PERC 6/E with 256MB or 512MB of battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
SAS 5/E HBA
LSI2032 PCIe SCSI HBA
Drive BaysInternal hard drive bay and hot-plug backplane.
Up to six 2.5” SAS, or SSD Drives
Maximum Internal StorageUp to 12TB
Hard Drives1Hot-plug Hard Drive Options:
2.5” SAS SSD, SATA SSD, SAS (10K, 15K), nearline SAS (7.2K), SATA (7.2K)
CommunicationsTwo dual port embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NIC with failover and load balancing. Optional
1GBe and 10GBe add-in NICs
Broadcom® NetXtreme® II 57711 Dual Port Direct Attach 10Gb Ethernet PCI-Express Network Interface Card with TOE and
iSCSI Offload
Intel® Gigabit ET Dual Port Server Adapter and Intel® Gigabit ET Quad Port Server Adapter
Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FCoE Ready for Future Enablement)
Brocade® CNA Dual-port adapter
Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D
Emulex® OCE10102-IX-DCNA iSCSI HBA stand-up adapter
Optional Add-In HBA’s:
Brocade® 8 GB HBAs
Power SupplyTwo hot-plug high-efficient 502W Energy Smart PSU or two hot-plug 717W High Output PSUs
Uninterruptible Power Supplies:
1000W-5600W
2700W-5600W High Efficiency Online
Extended Battery Module (EBM)
Network Management Card
AvailabilityDDR3 memory; ECC; hot-plug hard drives; optional hot-plug redundant power supplies; dual embedded NICs with
failover and load balancing support; optional PERC6/i integrated daughtercard controller with battery-backed cache; hotplug
redundant cooling; tool-less chassis; fibre and SAS cluster support; validated for Dell/EMC SAN
VideoIntegrated Matrox® G200, 8MB shared video memory
Remote ManagementiDRAC6 Enterprise (optional)
Systems ManagementDell™ OpenManage™
Embedded HypervisorOptional Embedded SD Media
Rack SupportReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for
threaded hole racks); ReadyRails™ static rails for 2-post and 4-post racks
Operating SystemsMicrosoft® Windows® Small Business Server 2011
Microsoft® Windows® Small Business Server 2008
Microsoft® Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V™)
Microsoft® Windows Server® 2008 R2, x64 (includes Hyper-V™ v2)
Microsoft® Windows® HPC Server 2008 R2
Novell® SUSE® Linux® Enterprise Server
Red Hat® Enterprise Linux®
Oracle® Solaris™
Virtualization Options:
Citrix® XenServer™
VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)
For more information on the specific versions and additions, visit www.dell.com/OSsupport.
Featured Database ApplicationsMicrosoft SQL Server solutions (see Dell.com/SQL)
Oracle® database solutions (see Dell.com/Oracle)

Rail Kit

none|readyrail-sliding-rail-kit-for-poweredge-r610|

Compare Servers

Feature R510 R610 R710
Processor Intel® Xeon® processor 5500 and 5600 series Intel® Xeon® processor 5500 and 5600 series Intel® Xeon® processor 5500 and 5600 series
Form Factor 2U rack 1U rack 2U rack
Front Side Bus Intel® QuickPath
Interconnect (QPI)
6.4GT/s
Intel® QuickPath
Interconnect (QPI)
6.4GT/s
Intel® QuickPath
Interconnect (QPI)
6.4GT/s
# Sockets 2 2 2
# Cores 2, 4, or 6 2, 4, or 6 2, 4, or 6
L2/L3 Cache 4MB, 8MB, and 12BM 4MB, 8MB, and 12BM 4MB, 8MB, and 12BM
Chipset Intel® 5500 Intel® 5520 Intel® 5520
DIMMs 8 DDR3 12 DDR3 18 DDR3
Min/Max RAM 1GB/128GB 1GB/192GB 1GB/288GB
Drive Bays 4 x 3.5”, or
8 x 3.5” or 2.5”, or
12 x 3.5” or 2.5” + 2 x internal 2.5”
6 x 2.5” 4 x 3.5" with optional flex bay,
6 x 3.5" without flex bay,
or
8 x 2.5”
Hard Drive Types SAS, SATA, and SSD Hot-plug SAS and SATA, nearline SAS and SSD Hot-plug SAS and SATA, nearline SAS and SSD
External Drive Bay(s) Four- and eight-drive chassis: optional internal SATA slimline optical drives such as DVD-ROM or DVD+RW Twelve-drive chassis: N/A Optional internal SATA slimline optical drives such as DVD-ROM or DVD+RW Optional flex bay expansion to support half-height tape backup unit
Embedded Hard Drive Controller PERC 6/i, SAS 6/iR, PERC H200, PERC H700, PERC S100, PERC S300 PERC 6/i, SAS 6/iR, PERC H200, PERC H700 PERC 6/i, SAS 6/iR, PERC H200, PERC H700
Optional Storage Controller Non-RAID:
SAS 5/E
LSI 2032 (for tape backup unit only)
6Gps SAS HBA
RAID:
SAS 6/iR
PERC 6/i
PERC 6/E
PERC H200
PERC H700
PERC H800
Software RAID:
PERC S100 (4-drive chassis only)
PERC S300 (4- and 8- drive chassis only)
Non-RAID:
SAS 5/E
LSI 2032 (for tape backup unit only)
6Gps SAS HBA
RAID:
SAS 6/iR
PERC 6/i
PERC 6/E
PERC H200
PERC H700
PERC H800
Non-RAID:
SAS 5/E
LSI 2032 (for tape backup unit only)
6Gps SAS HBA
RAID:
SAS 6/iR
PERC 6/i
PERC 6/E
PERC H200
PERC H700
PERC H800
Availability Hot-plug hard drives, redundant power, quad-pack LED diagnostic or LCD (with hot-plug hard drive chassis), memory mirroring Hot-plug hard drives, hot-plug redundant power and cooling, ECC memory, Single Device Data Correction (SDDC), memory demand and patrol scrubbing, high-availability failover cluster Hot-plug hard drives, hot-plug redundant power and cooling, ECC memory, Single Device Data Correction (SDDC), memory demand and patrol scrubbing, high-availability failover cluster
Server Management BMC, IPMI 2.0, Dell OpenManage™ Optional: iDRAC6 Express, iDRAC 6 Enterprise, vFlash iDRAC6 Express, BMC, IPMI 2.0, Dell OpenManage™ Optional: iDRAC6 Enterprise, vFlash iDRAC6 Express, BMC, IPMI 2.0, Dell OpenManage™ Optional: iDRAC6 Enterprise, vFlash
I/O Slots 3 PCIe + 1 storage slot or
1 PCIe + 1 storage slot
2 PCIe x8 G2 2 PCIe x8 + 2 PCIe x4 G2 or
1 x PCIe x16 + 2 PCIe x4 G2
RAID SAS 6/iR and PERC H200:
RAID 0, 1
PERC 6/i and PERC H700:
RAID 0, 1, 5, 6, 10, 50, 60
PERC S100: 0, 1, 5, 10
PERC S300: 0, 1, 5, 10
SAS 6/iR and PERC H200:
RAID 0, 1
PERC 6/i and PERC H700:
RAID 0, 1, 5, 6, 10, 50, 60
SAS 6/iR and PERC H200:
RAID 0, 1
PERC 6/i and PERC H700:
RAID 0, 1, 5, 6, 10, 50, 60
NIC/LOM Broadcom® BCM5716 2 x iSCSI TOE
Optional: various NICs available
Broadcom® BCM5709C 4 x iSCSI TOE
Optional: various NICs available
Broadcom® BCM5709C 4 x iSCSI TOE
Optional: various NICs available
USB 2 front, 2 back, 2 internal 2 front, 2 back, 1 internal 2 front, 2 back, 1 internal
Power Supplies Four-drive chassis: non-redundant, 480W Eight-drive and twelvedrive chassis: hot-plug redundant 750W Two redundant hot-plug high efficiency 502W or two redundant hot-plug high output 717W Two redundant hot-plug high efficiency 570W or two redundant hot-plug high output 870W
Fans Four-drive chassis:
four non-redundant, non-hotpluggable fans
Eight-drive chassis:
five non-redundant, non-hotpluggable fans
Twelve-drive chassis:
five redundant, non-hotpluggable, dual-rotor fans
Six dual-rotor fans
(dual processor configuration)
or
five dual-rotor fans
(single processor configuration)
Five hot-plug fans
(default processor configuration)
or
four hot-plug fans
(single processor configuration)

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
