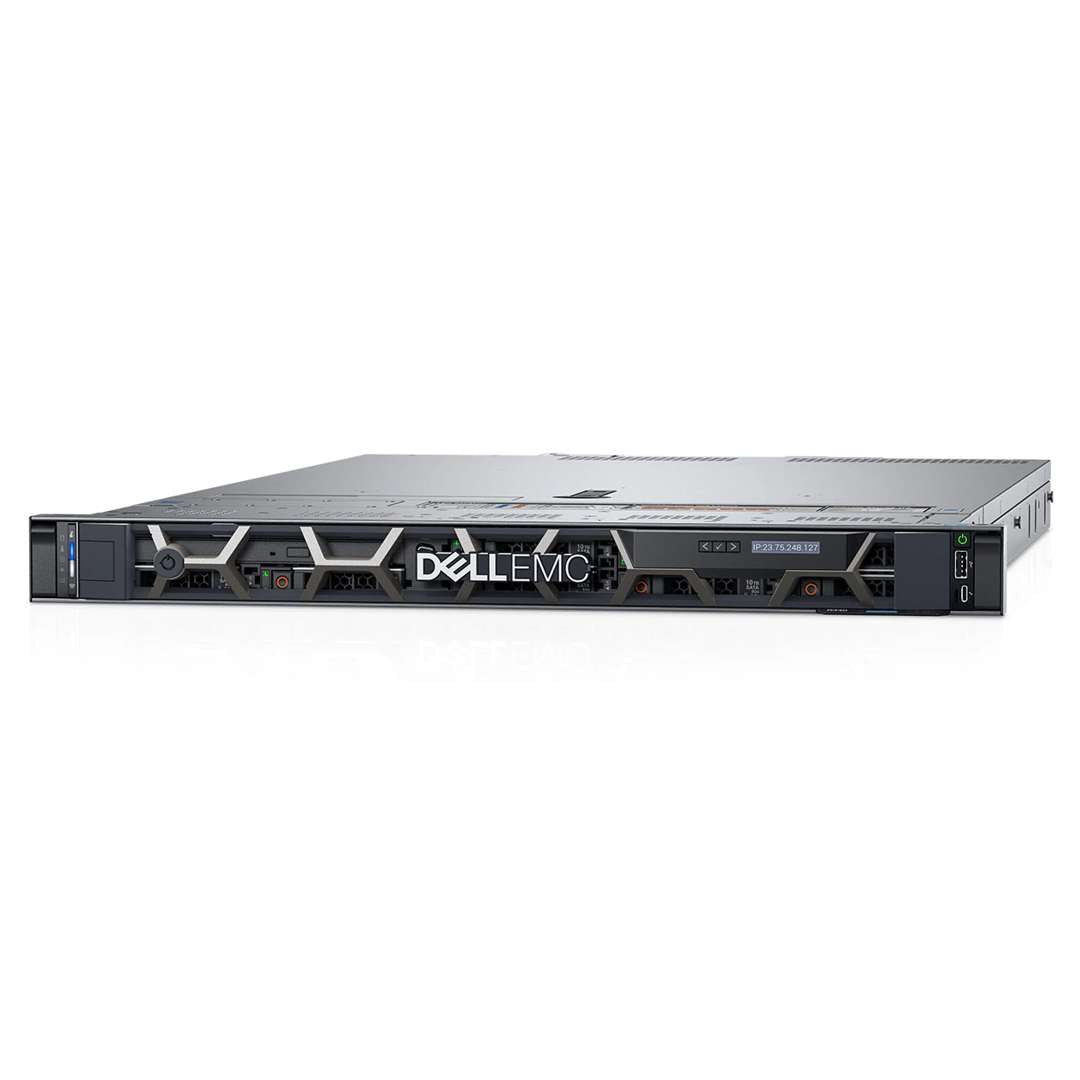

Dell PowerEdge R440 Rack Server Chassis (8x2.5")

Price: $776.25

Brand:
MPN:
DPE-R440-8x2.5-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Total:- $776.25


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R440 Rack Server Chassis (8x2.5")

Quick Specs

Form Factor: 1U rack server
Processor: 2 x Intel Xeon E5-2600v4 | Max: 20 Cores
Memory: 12 DDR4 RDIMM/LRDIMM 2666Mhz | Max: 1TB
Storage: 8 SFF SAS/NL-SAS/SATA (HDD/SSD) | Max: 76.8TB
RAID Controller: S140 (SW RAID) H330, H730, H740P, HBA330, H840, 12Gb/s SAS HBA
NIC/LOM: 2 x 1GbE LOM + (optional) 2 x 1GbE or 2x 10GbE SFP+ or 2 x 10GbE BaseT
Boot Options: BOSS-S1 or Internal dual SD module (IDSDM)
Remote Management: iDRAC9 with Lifecycle Controller
PCIe Slots: 2 | Gen: x16 3.0
GPU: None

Ideal for:

  • High-Performance Computing (HPC)
  • Web Tech

The Dell EMC PowerEdge R440 delivers the perfect combination of performance and density for HPC and web-tech deployments with a feature set right-sized for scale-out infrastructure environments.

Deliver performance at scale with the Dell EMC PowerEdge portfolio

Modern compute platforms from Dell EMC easily scale and leverage key technologies to maximize application performance. The Dell EMC PowerEdge R440 is built on a scalable architecture that provides the choice and flexibility to optimize performance and density.

  • Scale compute resources with 2nd Generation Intel Xeon Scalable processors, and tailor performance based on your unique workload requirements.
  • Flexible storage with up to 10 x 2.5 SAS/SATA/SSD with up to 4 NVMe PCIe SSD’s or 4 x 3.5.
  • Free up storage with boot optimized M.2 SSDs.

Intuitive systems management with intelligent automation

The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R440 is simply managed, freeing up time for high profile projects.

  • Simplify management of your servers with OpenManage Essentials, a 1:many console that automates all phases of lifecycle management: deployment, updates, monitoring, and maintenance.
  • Use Quick Sync 2, a wireless module, and the OpenManage Mobile app for at-server management, to configure or troubleshoot in the data center, and to receive alerts when you’re on the go.
Rely on PowerEdge with built-in security

Every PowerEdge server is made with a cyber-resilient architecture, building security into all parts of a server’s life cycle. The R440 uses these new security features so you can reliably and securely deliver the right data to where your customers are, no matter where they are. Dell EMC consider each part of system security, from design to end of life, to ensure trust and deliver worry-free, secure systems.

  • Rely on a secure supply chain that protects servers from factory to the data center.
  • Maintain data safety with cryptographically signed firmware packages and Secure Boot.
  • Prevent unauthorized or malicious change with Server Lockdown.
  • Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.

Performance in a density-optimized 1U, 2-socket rack server

Experience an outstanding balance of performance and density for scale-out computing. The Dell EMC PowerEdge R440 brings you value in a small form factor. Benefit from platform flexibility and maximize performance with dual 2nd Generation Intel Xeon Scalable processors, up to 16 DIMMs and scalable storage that lets you mix SSDs and NVMe PCIe SSDs. Embedded diagnostics and SupportAssist help the Dell EMC PowerEdge R440 to deliver maximum uptime in a worry-free environment.


Deliver performance at scale with the PowerEdge portfolio

Modern compute platforms from Dell EMC are designed to scale easily and use technologies that maximize application performance. The PowerEdge R440 rack server provides choice and flexibility that lets you optimize performance and density.

  • Scale compute resources with 2nd Generation Intel Xeon Scalable processors and tailor performance based on your unique workload requirements.
  • Gain storage flexibility with up to 10 x 2.5" SAS/SATA/SSD with up to 4 NVMe PCIe SSDs, or 4 x 3.5" disks.
  • Free up storage with boot-optimized M.2 SSDs.
Storage Options
The PowerEdge R440 system supports:
  • Up to 4 x 3.5 inch hot-swappable HDDs or 2.5 inch hot-swappable SSDs or HDDs using hybrid carrier to fit in the 3.5 inch drive bay

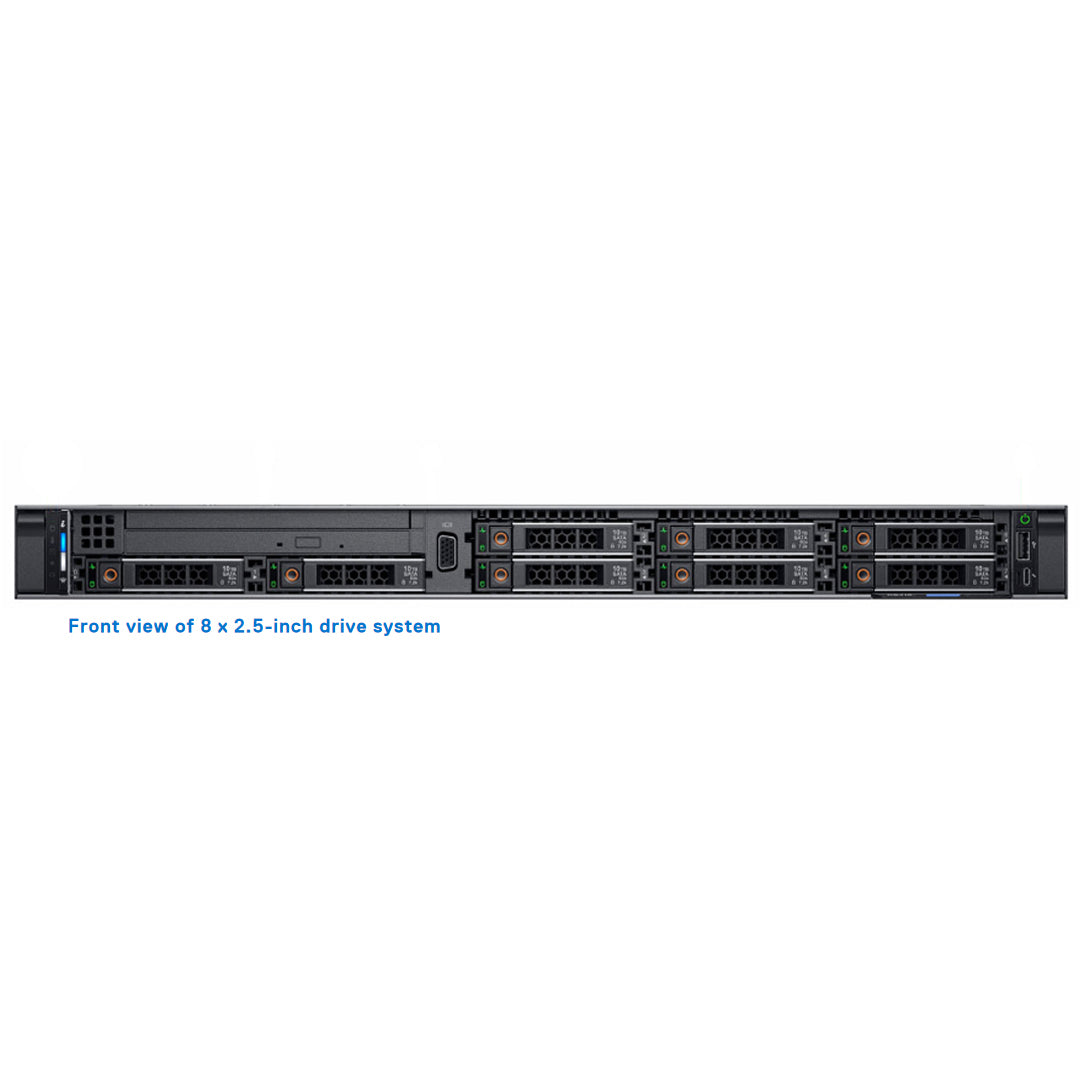

  • Up to 8 x 2.5 hot-swappable HDDs or SSDs
  • Up to 10 x 2.5 hot-swappable HDDs or SSDs

IDSDM or vFlash card Image of the Dell PowerEdge R440 IDSDM Card

The IDSDM with vFlash module has a dedicated slot at the back of the system chassis. This is a Dell EMC-proprietary PCIe x1 slot that uses a USB 3.0 interface to host. In the PowerEdge R440 systems, the IDSDM and vFlash card size changes from SD to microSD and the supported capacity for IDSDM microSD cards are 16 GB, 32 GB, or 64 GB, while for vFlash the capacity is 16 GB only. The write-protect switch is built onboard on the IDSDM module.

Boot Optimized Storage Subsystem (BOSS) Image of the Dell PowerEdge R440 BOSS Card

BOSS is a simple RAID solution card that is designed specifically for booting the system's operating system, which supports up to two 6 Gbps M.2 SATA drives. This card has a x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor.

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeatureTechnical Specification
ProcessorUp to two 2nd Generation Intel® Xeon® Scalable processors, up to 24 cores per processor
Memory16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max
Storage controllers
  • Internal Controllers: PERC H330, H730P, H740P, HBA330
  • External Controllers: H840, 12 Gbps SAS HBA
  • Software RAID:S140
Internal boot
  • Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
  • Internal Dual SD Module
Drive baysFront bays:
  • Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 76.8TB
  • up to 4 x 3.5 SAS/SATA HDD max 64TB
  • Optional DVD-ROM, DVD+RW
Power supplies
  • 450W Bronze (Cabled PSU)
  • 550W Platinum (Hot plug PSU with full redundancy option)
FansUp to six cabled fans
DimensionsForm factor: Rack (1U)
Height: 42.8mm (1.68”)
Width*: 434mm (17.08”)
Depth*: 714.62mm (28.13”)
Weight: 17.6kg (38.9lbs.)
BezelOptional LCD or security bezel
Embedded management
  • iDRAC9
  • iDRAC Direct
  • iDRAC REST API with Redfish
  • Quick Sync 2 BLE/wireless module
Consoles & MobileOpenManage Enterprise
OpenManage Essentials
OpenManage Power Manager
OpenManage Mobile
IntegrationsOpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules
ConnectionsOpenManage connections: Nagios® & Nagios® XI, IBM Tivoli Netcool/OMNIbus, Micro Focus Operations Manager
Tools
  • Dell EMC Repository Manager
  • Dell EMC Update Package
  • Dell EMC System Update
  • Dell EMC Server Update Utility
  • iDRAC Service Module
  • OpenManage Server Administrator
  • OpenManage Storage Services
Security
  • TPM 1.2/2.0 optional
  • Cryptographically signed firmware
  • Silicon Root of Trust
  • Secure Boot
  • System Lockdown (requires iDRAC Enterprise or Datacenter)
  • System Erase
I/O & PortsNetworking Options:
  • 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2x 10GbE SFP+ or 2 x 10GbE BaseT
Front ports:
  • 1 x Dedicated iDRAC Direct USB, 1 x USB 2.0, 1 x Video
Rear ports:
  • 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
Up to 2 x PCIe Gen 3 slots all x16
Supported operating systems
  • Citrix® XenServer®
  • Microsoft® Windows Server® with Hyper-V (2016 and 2019)
  • Red Hat® Enterprise Linux
  • Ubuntu® Server LTS
  • SUSE® Linux Enterprise Server
  • VMware® ESXi

Compare Servers

Feature PowerEdge R440 PowerEdge R430
Processor 2nd Generation Intel Xeon Scalable Processor Family Intel Xeon E5-2600 v3 or E5-2600 v4 processor
Chipset Intel C620 Intel C610
Memory 16x DDR4 RDIMM, LRDIMM 12x DDR4 RDIMM, LR-DIMM
Drive bays 3.5 inch, 2.5 inch - 12Gb SAS, 6Gb SATA and PCIe Storage (NVME) 3.5 inch, 2.5 inch - 12Gb SAS, 6Gb SATA
PCIe Slots 2x PCIe Gen3 (x16/x16) 2x PCIe Gen3 (x16/x8)
RAID Controller PERC 9/10/11 Mini-PERC 9
RAID Controller ● 10 x 2.5 inch SAS/SATA/NVMe
● 8 x 2.5 inch SAS/SATA
● 4 x 3.5 inch SAS/SATA
● 10 x 2.5 inch SAS/SATA
● 8 x 2.5 inch SAS/SATA
● 4 x 3.5 or 2.5 inch SAS/SATA
Embedded NIC 2x 1Gb LOM and optional LAN on riser card:
● 2x 1GbE
● 2x 10GbE
● 2x 10GbE SFP+
4 x 1Gb LOM
Power Supplies 450 W AC Cabled PSU, 550 W AC PSU 450 W AC Cabled PSU, 550 W AC PSU
Remote Management iDRAC9 iDRAC8
TPM TPM 2.0 China, TPM1.2, TPM2.0 TPM China, TPM1.2, TPM2.0
Rear USB 3.0 port Two rear ports One rear port
iDRAC Direct front port Micro USB USB type A
Cooling Fan Up to 6 fan support Up to 6 fan support
IDSDM Module Internal Dual SD Module (IDSDM) and vFlash Internal Dual SD Module (IDSDM)
BOSS Module M.2 SATA interface None
