Dell PowerEdge R7515 CTO Rack Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

The Rear dive is only allowed with the 12x3.5\" Chassis
Supports (1) AMD EPYC Processor

AMD EPYC Gen2

AMD EPYC Gen3

Bezel (Optional)

Optional bezel or security bezel

Memory

Supports up to (16) DIMMs DDR4

Rear Drive Modules (Optional)

This is just the Rear Drive Cage. Please select up to (2) 3.5\" Drives
The Rear Drive Cage takes over PCI-e Slot 4, and 5 and relocates PCI-e Slot 2, and 3.

RAID Controllers (Optional)

Default S150 Software SATA RAID controller

Boot Optimized Storage Subsystem (BOSS) (Optional)

Supports up to (2) BOSS m.2 SSD Drives

SSD (2.5\") SAS Drives (Optional)

If the 3.5\" Chassis was selected these drives will be installed in a 3.5\" HDD Carrier.

SSD (2.5\") SATA Drives (Optional)

If the 3.5\" Chassis was selected these drives will be installed in a 3.5\" HDD Carrier.

HDD (2.5\") SAS Drives (Optional)

If the 3.5\" Chassis was selected these drives will be installed in a 3.5\" HDD Carrier.

HDD (2.5\") SATA Drives (Optional)

If the 3.5\" Chassis was selected these drives will be installed in a 3.5\" HDD Carrier.

HDD (3.5\") SAS Drives (Optional)

Up to 8 x 3.5-inch
Or, 12 x 3.5-inch
Or, 12 x 3.5-inch + 2 x 3.5-inch (rear)

HDD (3.5\") SATA Drives (Optional)

Up to 8 x 3.5-inch
Or, 12 x 3.5-inch
Or, 12 x 3.5-inch + 2 x 3.5-inch (rear)

SSD (2.5\") NVMe Drives (Optional)

up to 12 x 2.5\" SAS\/SATA + 12 x 2.5\" SAS\/SATA\/ NVMe drives
Or, 8 x 2.5\" (SAS\/SATA\/ NVMe ) + 16 NVMe drives
Or, 24 x 2.5\" NVMe drive

NVMe PCI-e SSD Cards (Optional)

NVMe PCIe SSD (FH) Slot 2, 3
NVMe PCIe SSD (HH) Slot 4, 5

GPU (Optional)

Up to 4 Single-Wide GPU(T4);
Up to 2 Single-Wide Full-Height GPU's;
Up to 1 Full-Height FPGA

PCIe Riser Full Height (Optional)

Up to (4) PCI-e Slots. 2 x Gen3 slots 2 x16 and 2 x Gen4 slots 2 x16
The Rear Drive Cage takes over PCI-e Slot 4, and 5 and relocates PCI-e Slot 2, and 3.
Please read the Riser Configurations in the Manuals below for more details information.

PCIe Riser Low Profile (Optional)

Up to (4) PCI-e Slots. 2 x Gen3 slots 2 x16 and 2 x Gen4 slots 2 x16
The Rear Drive Cage takes over PCI-e Slot 4, and 5 and relocates PCI-e Slot 2, and 3.
Please read the Riser Configurations in the Manuals below for more details information.

Networking Options (NDC) (Optional)

Dual Internal SD Module (IDSDM) (Optional)

14th-gen-internal-dual-sd-module-idsdm-r640-r740-r440-r540

Optical Drive (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express

Trusted Platform Module (Optional)

Power Supplies

Supports up to (2) PSU's

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Refurbished Dell EMC PowerEdge R7515 CTO Rack Server

PowerEdge R7515
The Dell EMC PowerEdge R7515 Rack
Server is a highly scalable Single-socket2U rack server that delivers performanceand outstanding TCO. It is ideal for thefollowing workloads and applications:

  • Software-Defined Storage (SDS)
  • Virtualization
  • Data Analytics

Deliver breakthrough performance, innovation and density for traditional and emerging workloads

Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The Dell EMC PowerEdge R7515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:

  • 100%more processing cores and faster data transfer speeds with PCIe Gen 4
  • 20%more memory performance for scale out environments
  • Direct connect SAS/SATA/ NVMe for vSAN Ready Nodes
  • High core count performance for highest VM density in a single-socket design
  • Multi-die architecture offers low latency and floating-point performance for big data and containers

Increase efficiency and accelerate operations in the Dell EMC PowerEdge R7515

The Dell EMC OpenManage systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.

  • Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
  • Simplify and centralize one to many management with the OpenManage Enterprise console.
  • Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.

Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating
security deeply into every phase in the lifecycle, from design to retirement.

  • Enhance security with platform enablement of AMD Secure Memory Encryption(SME) and Secure Encrypted Virtualization (SEV).
  • Operate your workloads on a secure platform anchored by cryptographicallytrusted booting and silicon root of trust.
  • Maintain server firmware safety with digitally signed firmware packages.
  • Detect and remediate unauthorized or malicious change with drift detectionand system lockdown.
  • Securely and quickly wipe all data from storage media including hard drives,SSDs and system memory with System Erase.

Product Information for Dell R7515-CTO

Base Server Standard Capabilities

FeatureTechnical Specification
ProcessorOne 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
MemoryDDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S
Storage controllers
  • HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA
  • Chipset SATA/SW RAID(S150): Yes

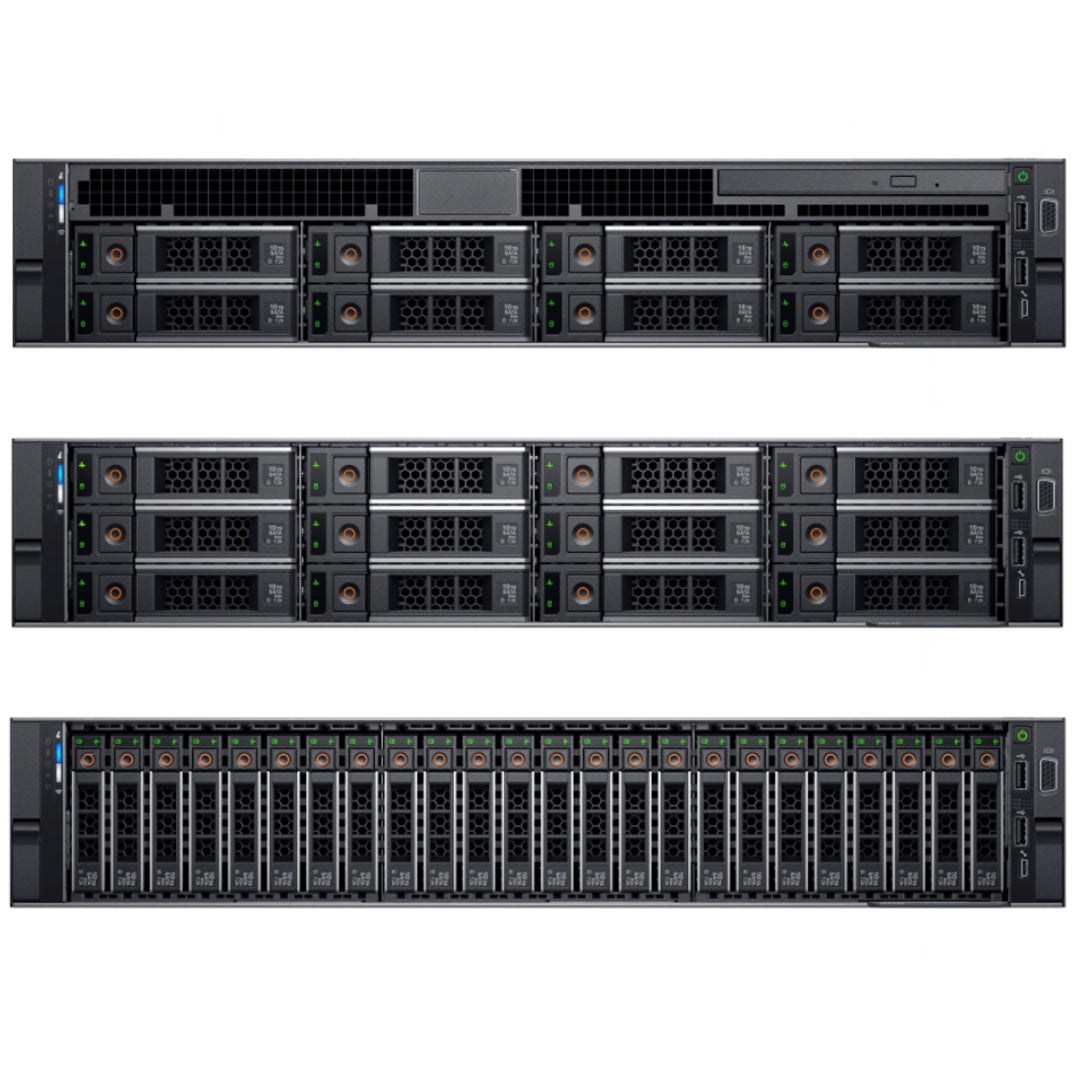

Drive baysFront bays:
  • Up to 8 x3.5” Hot Plug SATA/SAS HDDs
  • Up to 12x 3.5” hot-plug SAS/SATA HDDs
  • Up to 24x 2.5” Hot Plug SATA/SAS/NVMe
Rear Bays:
  • Up to 2x 3.5” hot-plug SAS/SATA HDDs
  • Internal: 2 x M.2 (BOSS)
Power supplies
  • 800W Platinum
  • 750W Titanium
  • 750W Platinum
  • 1100W Platinum
  • 1600W Platinum
FansStandard/High Performance Fan
N+1 Fan redundancy
DimensionsHeight: 86.8mm (3.42”)
Width: 434.0mm (17.09”)
Depth: 647.1mm (25.48”)
Weight: 27.3 kg (60.19 lb)
Form Factor2U Rack Server
Embedded mgmt
  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 BLE/wireless module
BezelOptional LCD bezel or security bezel
OpenManage™ SoftwareConsoles
  • OpenManage Enterprise
  • OpenManage Enterprise Power Manage
  • OpenManage Mobile
Mobility
  • OpenManage Mobile
Tools
  • Dell EMC RACADM CLI
  • Dell EMC Repository Manager
Integrations & ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC
Networking Options (NDC)2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
GPU OptionsUp to 4 Single-Wide GPU(T4);
Up to 1 Full-Height FPGA
PortsFront Ports:
  • 1 x Dedicated iDRAC direct micro-USB
  • 1 x USB 2.0
  • 1 x Video
Rear Ports
  • 2 x 1GbE
  • 1 x Dedicated iDRAC network port
  • 1 x Serial (optional)
  • 2 x USB 3.0
  • 1 x Video
PCIeUp to 4:
  • 2 x Gen3 slots 2 x16
  • 2 x Gen4 slots 2 x16
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi
