HPE ProLiant BL660c Gen9 E5-4600 v4 SAS/SATA Server Blade Chassis | 844352-B21

ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page

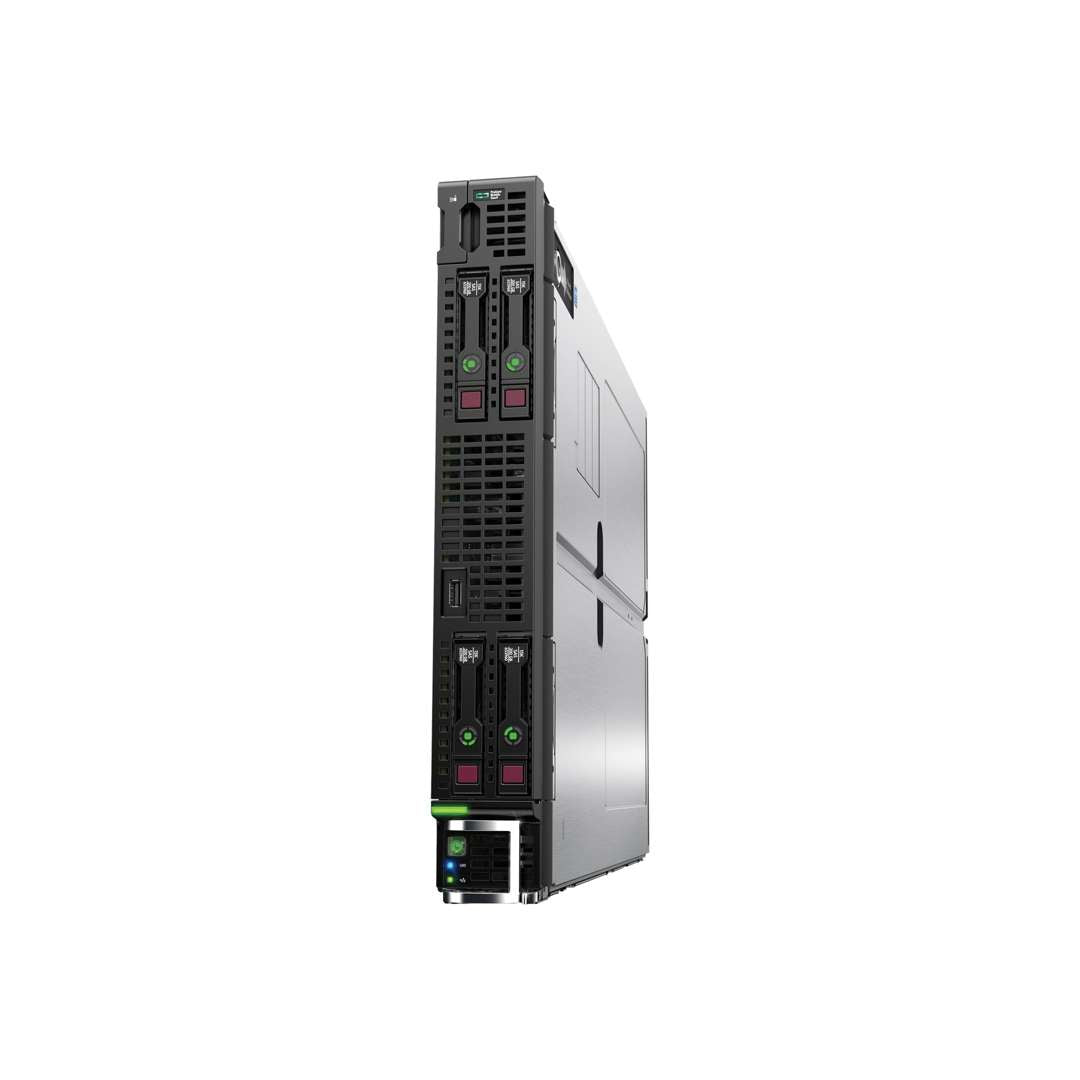

Refurbished HPE ProLiant BL660c Gen9 E5-4600 v4 SAS/SATA Server Blade Chassis | 844352-B21

Comes with:

  • System board assembly for Intel Xeon E5-4600v4 processors (858552-001)
  • SAS/SATA drive backplane (795117-001)

The HP ProLiant BL660c Gen9 scales workloads and infrastructure without compromise. Designed to deliver a balance of performance, scalability, and manageability, it delivers outstanding cost and accelerated time to value for data centers.

This blade is ideal for workloads that require a fine-tuned balance between space, price, and performance—such as database, virtualization, business processing, analytics, HPC, and other data-intensive applications.

What's New for BL660c Gen9

  • E5-4600 v4 Intel Xeon processors and HPE 2400MT/s DDR4 SmartMemory.
  • Support for 2 NVMe SSDs for high performance caching
  • Optional 120GB dual M.2 kit
  • Support for 2400 MT/s DDR4 memory
  • HPE PCIe Workload Accelerators for up to 3.2TB of flash based cache
  • 4 SFF Drive bays
  • Upto 4 SFF drives, internal USB 3.0, optional dual micro-SD, and optional M.2 support deliver a variety of system boot options.

You have the choice of 4 CTO Chassis. They are split up for Processor and Drive reasons. Since this system can handle Intel Xeon e5-4600 V3 (759483-001)and V4 (858552-001). Both go on their own System board which can handle certain Memory DIMM speeds. The Chassis are also broken out into Drive Type. This system has two different backplanes to be installed on the drive cages. The SAS/SATA backplane (795117-001) and the NVMe backplane (744413-001). Below are more details into each type.

NVMe Drives
You must select the NVMe chassis, this has the NVMe backplane installed on it. You must also select the NVMe Pass-through controller along with theHPE BL460c G9 Broadwell NVMe FIO Setting (825555-B21).This FIO option disables SFF bays 3 and 4 and isnot compatible with the HPE Smart Array P246br. Hewlett Packard Enterprise
recommends the use of a dual M.2 solid state drive kit for boot when using this option.
Once all of these are selected you can only choose up to (2) NVMe SSD Drives. When these Drives are installed the other two drive bays are non-functional and blanks will cover them.

This server comes standard with the B140i Controller. This controller only supports SATA drives. If the HPE Smart Array P244br SAS Controller is not selected then 2 SATA cables will need to be installed. If you want to have RAID enabled while using Factory Standard B140i you'll also need to install the HPE FIO B140i SW RAID Enablement Kit (784308-B21).

For SAS Drives theHPE Smart Array P246br/1GB FBWC 12Gb 4-ports Int SAS Controller (726793-B21)along with SAS cables will enable this server to run 4 SAS Drives.

HPE iLO Management (standard)
Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Configure and boot your servers securely with industry standardUnified Extensible Firmware Interface (UEFI).

Server Utilities
HPE Smart Update -Optimize firmware and driver updates with HPE Smart Update solutions.HPE OneView Standard -HPE OneView Standard can inventory, monitor, alert, and report on your G6 thru Gen9 servers, with use of the REST API and HPE OneView user interface.

Mezzanine Adapters
Up to three (3) optional Fibre Channel mezzanine HBAs and (2) FlexibleLOMs providing four Ethernet ports are supported on the HPE ProLiant BL660c Gen9.

When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active
(regardless of operating mode). When installed in any other mezzanine slot, both ports
are active. The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in any mezzanine slot if operated in any other mode. Optional dual-port Fibre Channel mezzanine card(s) for redundant SAN connections.
