EMC VNX5300 Disk Processor Enclosure (DPE)

Brand:
MPN:
VNX5300
Type:
Storage Controllers
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNX5300 Description

VNX5300 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX5300's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.

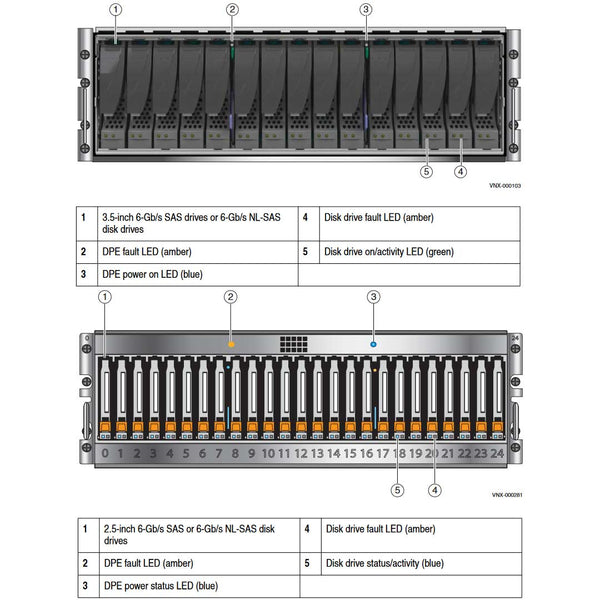

  • - 15-bay 3.5" or 25-bay 2.5"
  • - 3.5" & 2.5" SAS / Flash
  • - RAID 0 / 1 / 3 / 5 / 6 / 10
  • - Fibre Channel (FC), NFS, CIFS, MPFS, pNFS
  • - 125 Max Disk Drives

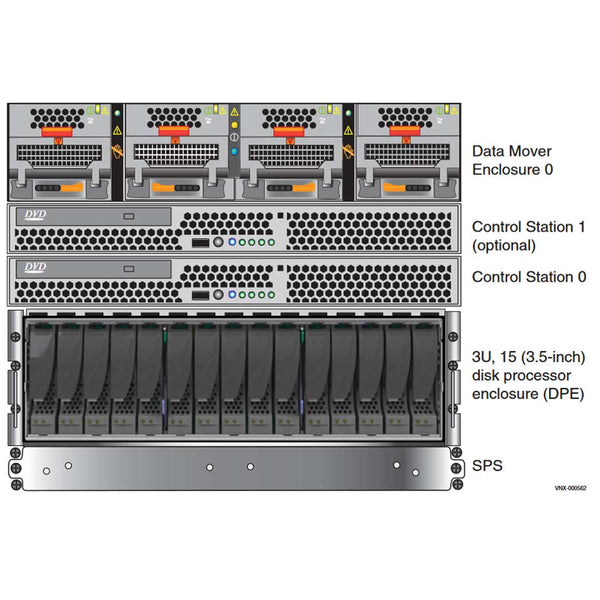

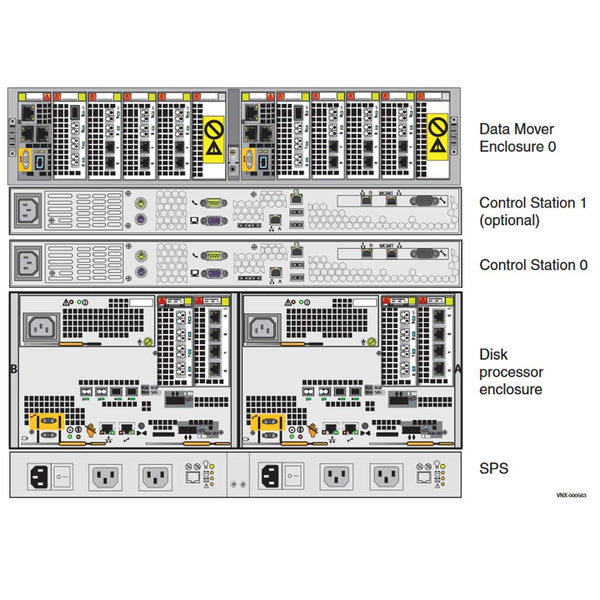

VNX5300 Disk Processor Enclosure (DPE) is a high-performance unified storage system based on modular architecture that integrates hardware components for block, file, and object with concurrent support for native NAS, iSCSI, Fibre Channel, and FCoE protocols. The VNX5300 deliveres file (NAS) functionality via X-Blade data movers and block (iSCSI, FCoE, and FC) storage via dual storage processors leveraging full 6Gbps SAS disk drive topology. The VNX5300 allows you to even start with block or file functionality and easily upgrade to unified storage when needed.

EMC VNX5300 Technical Specifications

EMC VNX5300 TECHNICAL SPECIFICATIONS
Form Factor 3U Rack
Storage Type Unified
Maximum Raw Capacity 360 TB
Max SAN Hosts 2,048
Max Number of Pools 20
Max Number of LUNs 2,048
Max LUN Size 16TB (Virtual Pool LUN)
Max File System Size 16 TB
Maximum Usable File Capacity per X-Blade 256 TB
Dual Controllers (SPs) Standard
Number of Drives (Min/Max) 4/125

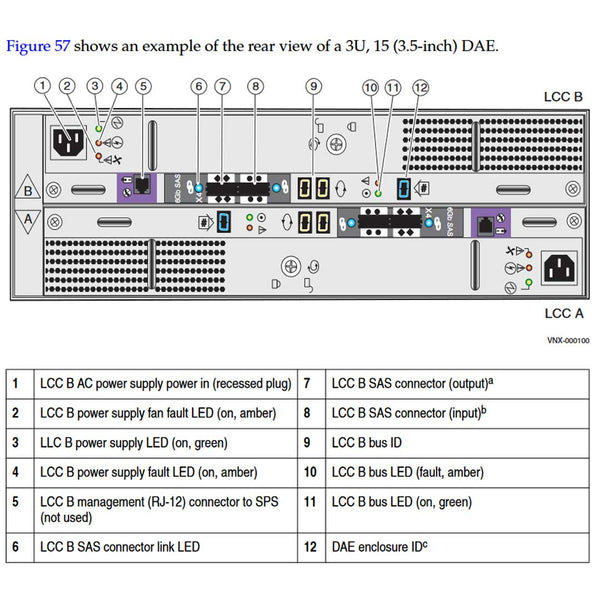

Drive Enclosure Options 15x 3.5" SAS/Flash (3U)

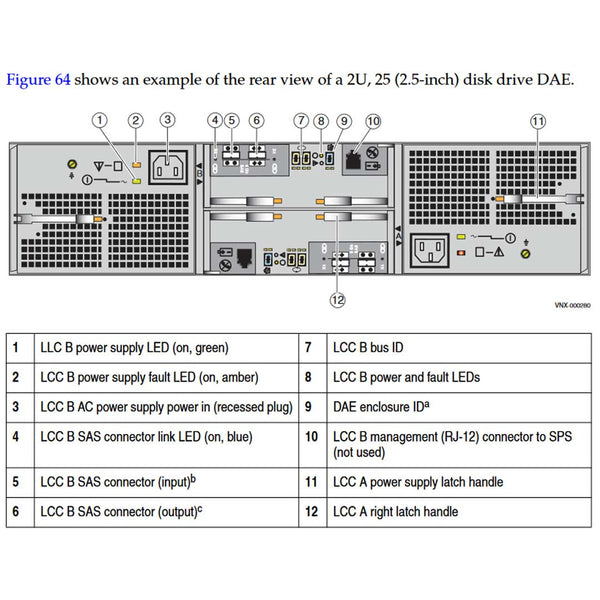

25x 2.5" Flash/SAS Drives (2U)
Drive Options 3.5" Drive Enclosure (15 x 3.5")
300GB 10K 6Gbps SAS (V3-VS10-300) (15-Disk DAE)
300GB 15K 6Gbps SAS (V3-VS15-300) (15-Disk DAE)
600GB 10K 6Gbps SAS (V3-CS10-600) (15-Disk DAE)
600GB 15K 6Gbps SAS (V3-VS15-600) (15-Disk DAE)
900GB 10K 6Gbps SAS (V3-VS10-900) (15-Disk DAE)
1TB 7.2K 6Gbps SAS (V3-VS07-010) (15-Disk DAE)
2TB 7.2K 6Gbps SAS (V3-VS07-020) (15-Disk DAE)
3TB 7.2K 6Gbps SAS (V3-VS07-030) (15-Disk DAE)
4TB 7.2K 6Gbps SAS (V3-VS07-040) (15-Disk DAE)
100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLV3VS6F) (15-Disk DAE)
100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (V3-VS6F-100) (15-Disk DAE)
200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLV3VS6F) (15-Disk DAE)
200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (V3-VS6F-200) (15-Disk DAE)

2.5" Drive Enclosure (25 x 2.5")
300GB 10K 6Gbps SAS (V3-2S10-300) (25-Disk DAE)
600GB 10K 6Gbps SAS (V3-2S10-600) (25-Disk DAE)
900GB 10K 6Gbps SAS (V3-2S10-900) (25-Disk DAE)
100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLV32S6F-100) (25-Disk DAE)
100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (V3-2S6F-100) (25-Disk DAE)
200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLV32S6F-200) (25-Disk DAE)
200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (V3-2S6F-200) (25-Disk DAE)
Block Components
CPU / Memory Per Controller Intel Xeon 5600 Series / 16GB

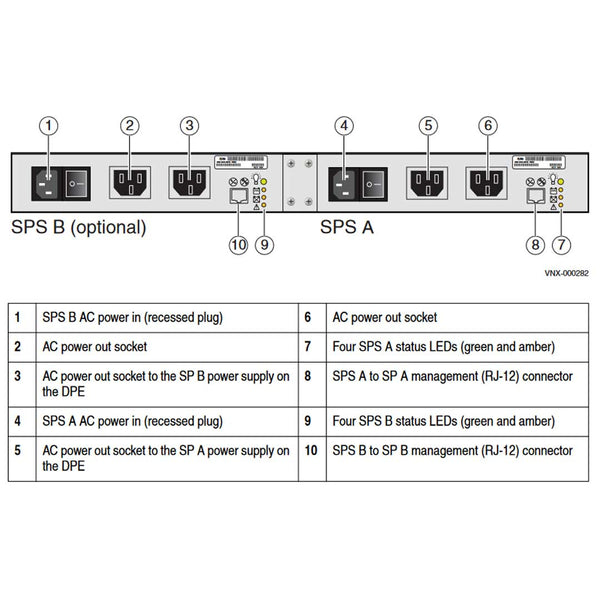

Standby Power System 1U 1.2KW
Max Block UltraFlex IO Modules per Array 4

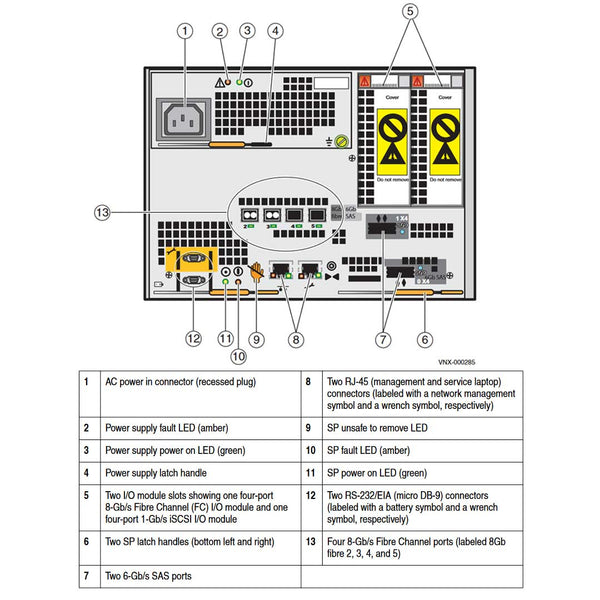

Embedded IO Ports per Array 8 FC Ports
4 SAS Ports (2 BE SAS Buses) (4 Embedded FC Ports per array are reserved for file connectivity)
Max Total Ports per Array 24
RAID Options 0, 1, 10, 3, 5, 6
2/4/8 Gbps FC Max Ports per Array 16
1 GBaseT iSCSI Max Total Ports per Array 8
10GbE iSCSI Max Total Ports per Array 8
Max FCoE Total Ports per Array 8
6 Gbps SAS Buses (4 Lanes per Bus) for DAE Connections 2
File Components

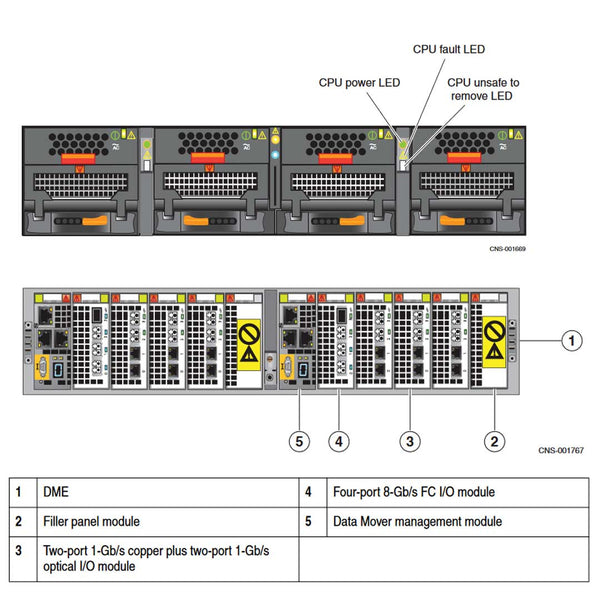

# File X-Blades 1-2

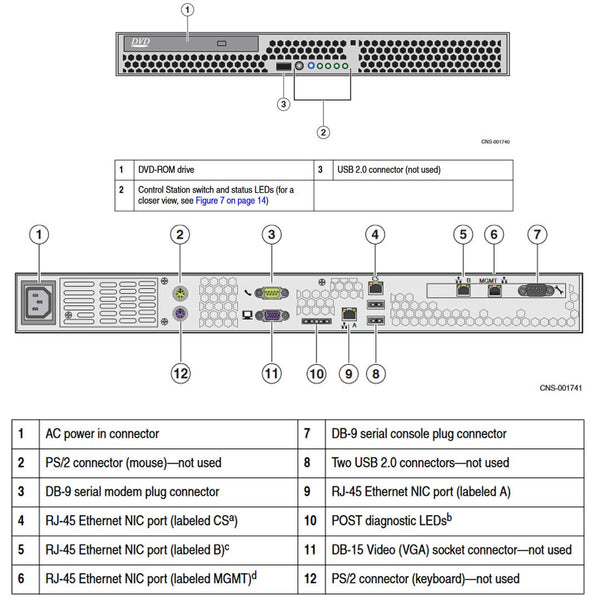

# Control Stations 1-2 x 1U Server
X-Blade: CPU/Memory Intel Xeon 5600 Series / 6GB
Max File UltraFlex IO Modules per X-Blade 3
Min/Max 2/4/8 Gbps FC Ports per X-Blade 4
Max IP Ports per X-Blade 8
Max 1GBaseT Ports per X-Blade 8
Max 10GbE Ports per X-Blade 4
Management LAN 2x 10/100/1000 Copper GbE
Compatible Disk Arrays V31-DAE-R-15
V31-DAE-N-15
V2-DAE-R-25-A
V2-DAE-N-25-A
Chassis Part Number 100-562-178 SPE & DME Chassis Assembly
100-562-440 2U SPE4 Empty Enclosure Chassis Assembly
Host Connections 2Gbps Fibre Channel
4Gbps Fibre Channel
8Gbps Fibre Channel
1Gbps iSCSI
10Gbps iSCSI
10Gbps FCoE
ECS Warranty 1-Year Parts Replacement Warranty
