Price: Configure for Price

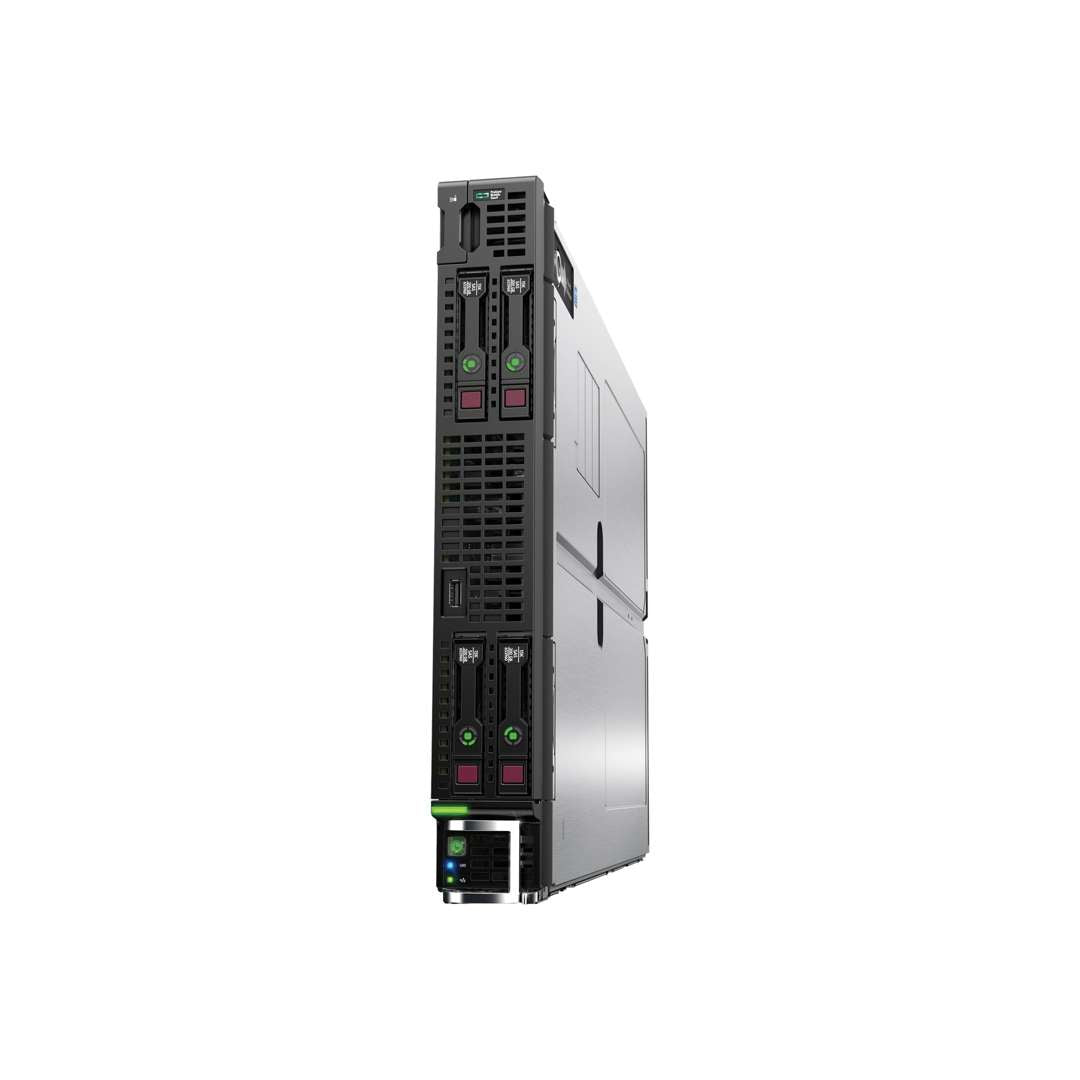

The HP ProLiant BL660c Gen9 scales workloads and infrastructure without compromise. Designed to deliver a balance of performance, scalability, and manageability, it delivers outstanding cost and accelerated time to value for data centers.
This blade is ideal for workloads that require a fine-tuned balance between space, price, and performance—such as database, virtualization, business processing, analytics, HPC, and other data-intensive applications.
Chassis
You have the choice of 4 CTO Chassis. They are split up for Processor and Drive reasons. Since this system can handle Intel Xeon e5-4600 V3 (759483-001)and V4 (858552-001). Both go on their own System board which can handle certain Memory DIMM speeds. The Chassis are also broken out into Drive Type. This system has two different backplanes to be installed on the drive cages. The SAS/SATA backplane (795117-001) and the NVMe backplane (744413-001). Below are more details into each type.

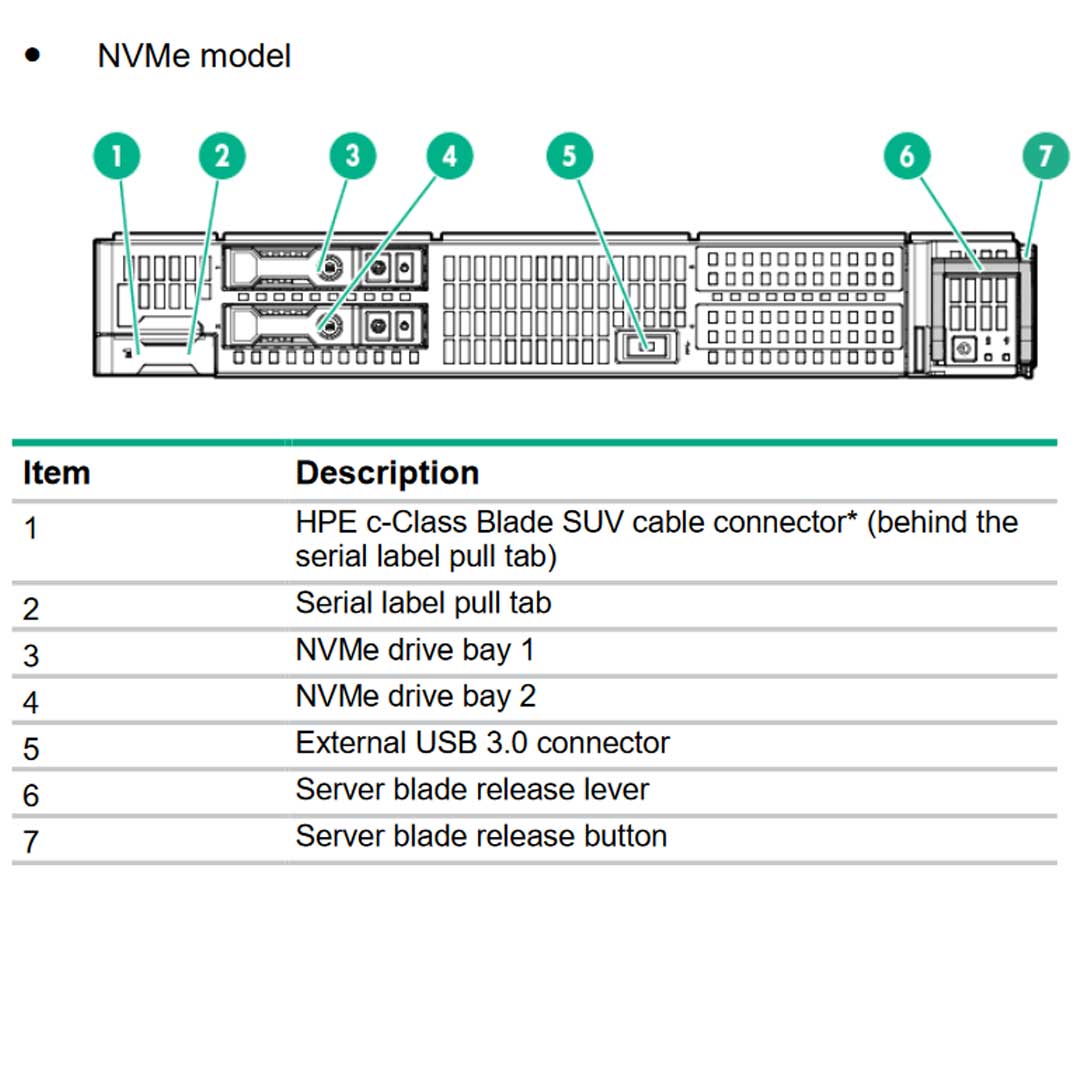

NVMe Drives
You must select the NVMe chassis, this has the NVMe backplane installed on it. You must also select the NVMe Pass-through controller along with the HPE BL460c G9 Broadwell NVMe FIO Setting (825555-B21). This FIO option disables SFF bays 3 and 4 and isnot compatible with the HPE Smart Array P246br. Hewlett Packard Enterprise
recommends the use of a dual M.2 solid state drive kit for boot when using this option.Once all of these are selected you can only choose up to (2) NVMe SSD Drives. When these Drives are installed the other two drive bays are non-functional and blanks will cover them.

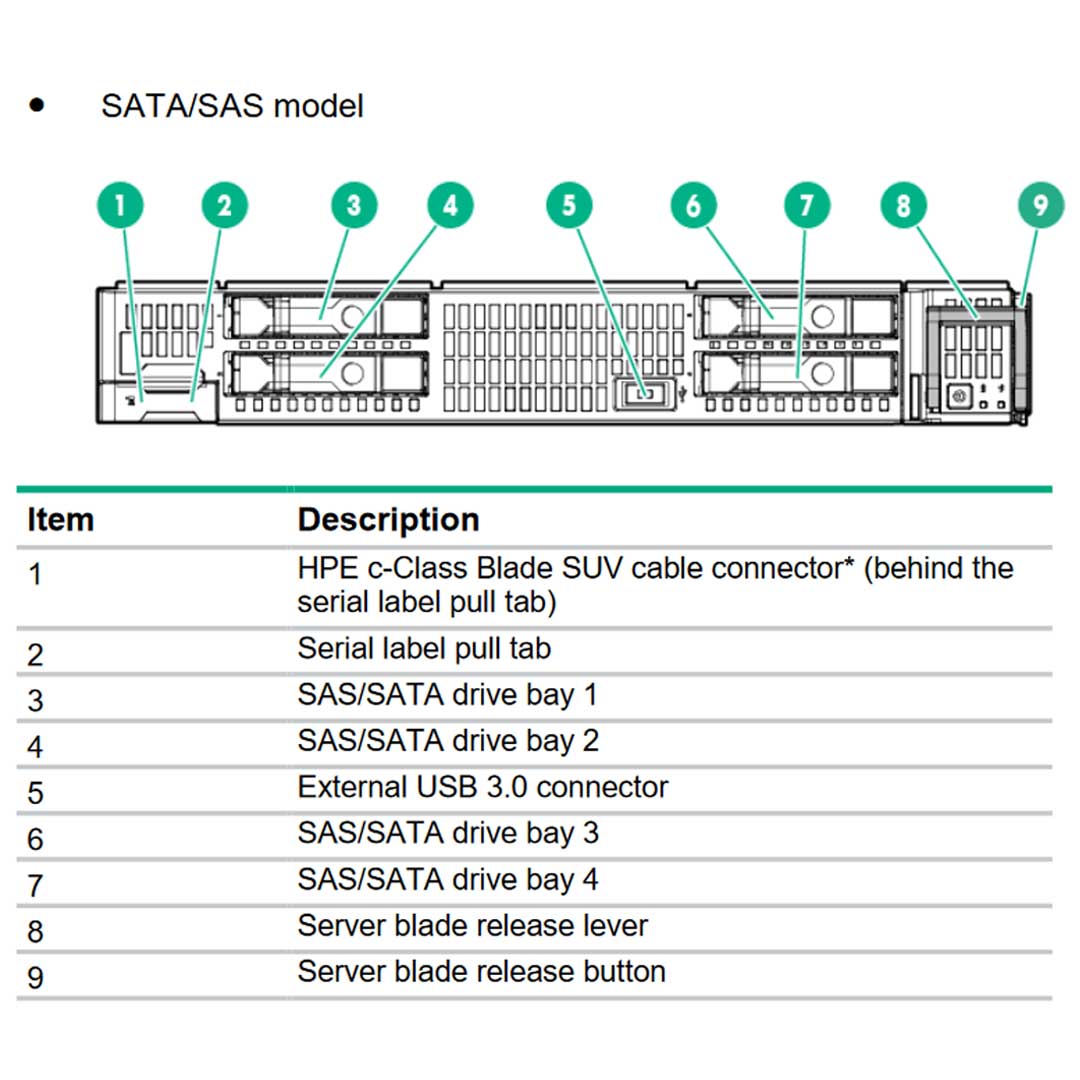

SAS/SATA Drives
This server comes standard with the B140i Controller. This controller only supports SATA drives. If the HPE Smart Array P244br SAS Controller is not selected then 2 SATA cables will need to be installed. If you want to have RAID enabled while using Factory Standard B140i you'll also need to install the HPE FIO B140i SW RAID Enablement Kit (784308-B21).
For SAS Drives the HPE Smart Array P246br/1GB FBWC 12Gb 4-ports Int SAS Controller (726793-B21)along with SAS cables will enable this server to run 4 SAS Drives.
HPE iLO Management (standard)
Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Server Utilities
HPE Smart Update -Optimize firmware and driver updates with HPE Smart Update solutions.HPE OneView Standard -HPE OneView Standard can inventory, monitor, alert, and report on your G6 thru Gen9 servers, with use of the REST API and HPE OneView user interface.
Mezzanine Adapters
Up to three (3) optional Fibre Channel mezzanine HBAs and (2) FlexibleLOMs providing four Ethernet ports are supported on the HPE ProLiant BL660c Gen9.
When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active
(regardless of operating mode). When installed in any other mezzanine slot, both ports
are active. The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in any mezzanine slot if operated in any other mode. Optional dual-port Fibre Channel mezzanine card(s) for redundant SAN connections.
Feature | Description | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Processor | One of the following depending on model: E5-4600 v4 Series processors
E5-4600 v3 Series processors
| |||||||||||||||
Cache memory | One of the following depending on model:
| |||||||||||||||
NOTE:
| ||||||||||||||||
Upgradeability | Upgradeable to four (4) processors | |||||||||||||||
Chipset |
| |||||||||||||||
On system management chipset | HPE iLO (Firmware HPE iLO4 2.0), 4GB NAND with 1GB USB user space configurable VIA UEFI and accessible VIA iLO | |||||||||||||||
Memory protection |
| |||||||||||||||
Memory |
| |||||||||||||||
Network controller |
Standard iLO network controller: One (1) 10/100 Mb/s port for the HPE iLO 4 to onboard administrator link. The onboard administrator (With 10/100/1000 Mb/s) to BladeSystem link is 1 Gb/s. | |||||||||||||||
NOTE:
| ||||||||||||||||
Expansion slots | Three (3) I/O expansion mezzanine slots:
Mezzanine card options include:
| |||||||||||||||
NOTE:
| ||||||||||||||||
Server ROM | The HPE ProLiant ROM is used to configure:
| |||||||||||||||
Server UEFI/Legacy ROM | UEFI Is an industry standard that provides better manageability andmore secured configuration while interacting with users server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for legacy BIOS boot mode. UEFI Enables numerous new capabilities specific to HPE ProLiant servers
| |||||||||||||||
NOTE:
| ||||||||||||||||
Storage controller (All BTO models) | One (1) HPE Smart Array P246br Controller with 1GB Flash Backed Write Cache (FBWC) supporting RAID 0, 1, and 5 | |||||||||||||||
NOTE: The HPE Smart Array P246br and the HPE B140i (Chipset SATA). Support four (4) Small Form Factor (SFF) hot plug drive bays. | ||||||||||||||||
Maximum internal storage | One of the following depending on model:
NOTE:
| |||||||||||||||
Interfaces |
| |||||||||||||||
Industry standard compliance |
| |||||||||||||||

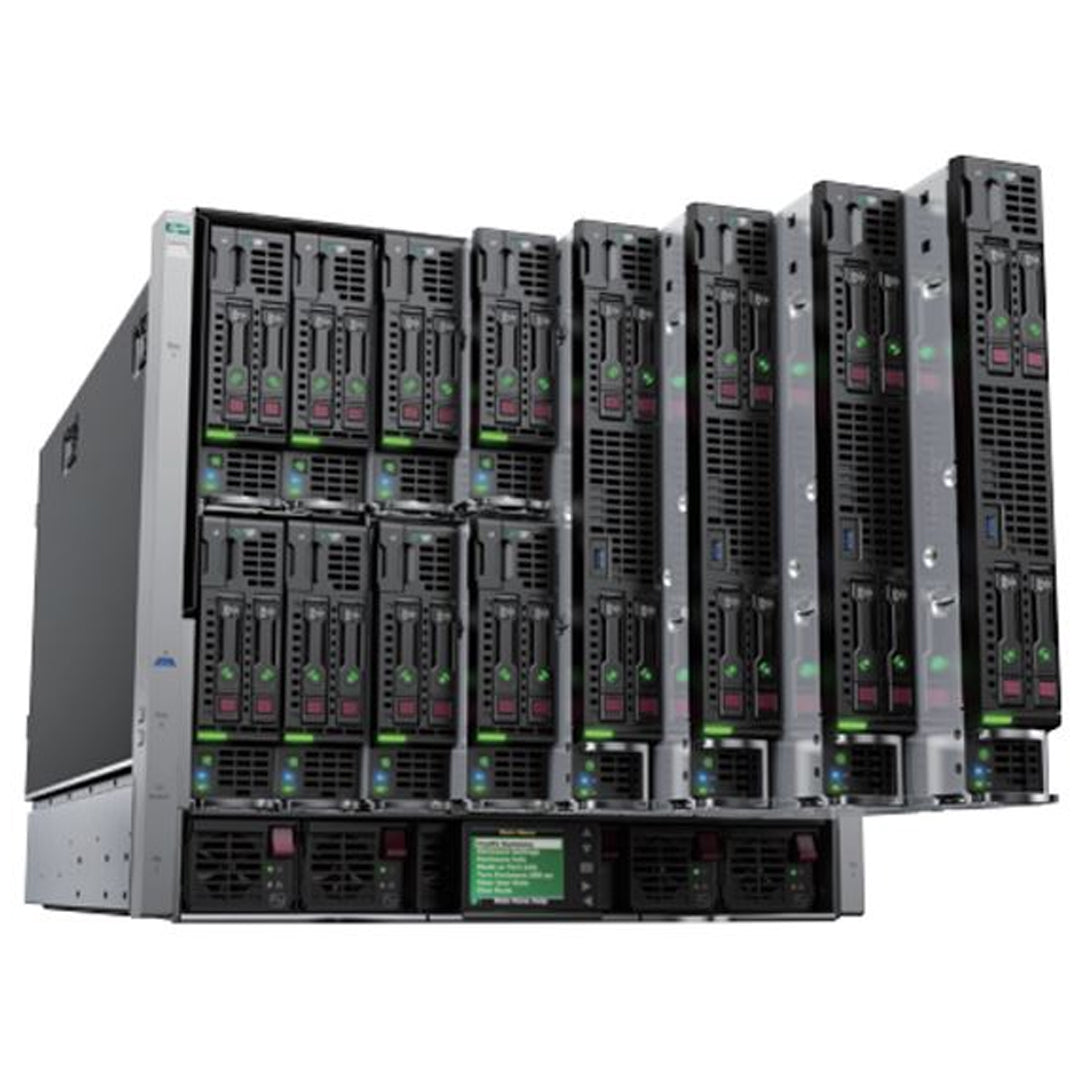

Enclosures | Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet users individual needs:
Server blades, interconnect modules, power supplies, fans and redundant onboard administrator modules are all designed to fit into the c3000 and c7000 enclosures. | |||||||||||||||
Graphics | Integrated Matrox G200eh video controller
HPE iLO Management on system management memory
| |||||||||||||||
Form factor | HPE ProLiant BL660c Gen9 is a full-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures | |||||||||||||||
Embedded management |
| |||||||||||||||
Server utilities |
| |||||||||||||||
Security |
| |||||||||||||||
Fibre channel support | Up to three (3) optional fibre channel mezzanine HBAs are supported on the HPE ProLiant BL660c Gen9 | |||||||||||||||
Compatible SAN |
| |||||||||||||||
Server management |
| |||||||||||||||
High performance clusters |
|
Feature | Description |
|---|---|
Operating systems and virtualization software support for ProLiant servers |
|
Specification | Description |
|---|---|
Dimensions (H x W x D) | With bezel: 366.27 x 56.54 x 516.67 mm (14.42 x 2.23 x 20.34 in) |
Weight (Approximate) |
|
Specification | Description |
|---|---|
System inlet temperature | Operating: 10° to 35°C (50° to 95°F) At sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed System performance may be reduced if operating with a fan fault or above 30°C (86°F). |
Non-operating: -30° to 60°C (-22° to 140°F) Maximum rate of change is 20°C/hr (36°F/hr) | |
Relative Humidity (Non-Condensing) | Operating: 10 to 90% Relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature |
Non-operating: 5 to 95% Relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature | |
Extended ambient operating support | For Approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) At sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) |
Altitude | Operating: 3,050 m (10,000 ft) This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min) |
Non-operating: 9,144 m (30,000 ft) Maximum allowable altitude change rate is 457 m/min (1,500 ft/min) |
 Spec Sheet | Technical Guide |
