Price: Ask for Quote
*Adds to cart & you can request a quote from the cart page

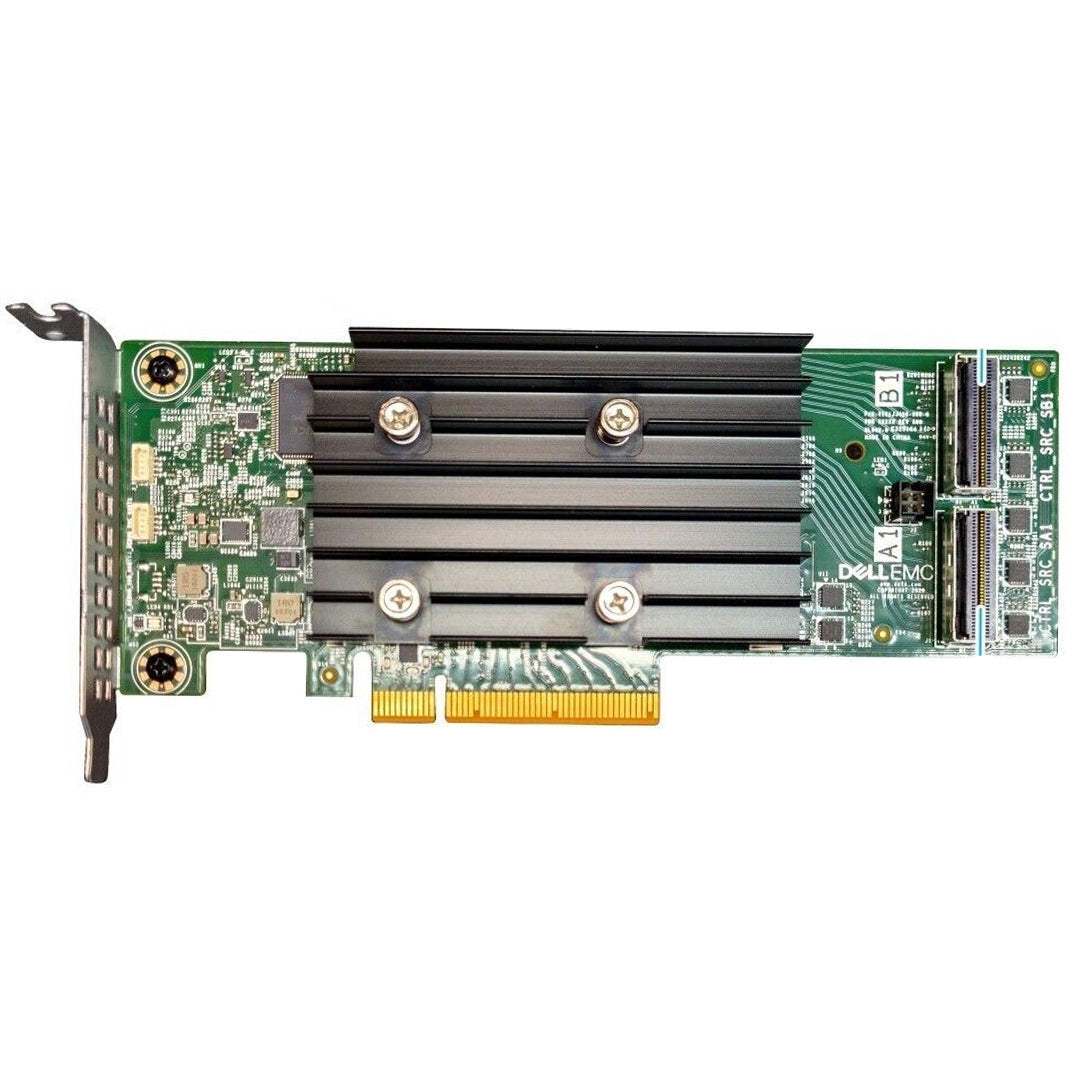

Dell PERC H355 Low Profile x8 PCI-e RAID Controller | X63V7
Interface Support
PCI Support :PCIe Gen 4
SAS Connection :16 ports- 2 x 8 Internal
Cache Memory Size :No Cache
Write Back Cache :No Cache
Raid Level : 0,1,10
Max Drive Support : Up To 32 RAID, or 32 Non-RAID
RAID Support :Hardware RAID
| Feature | PERC H355 adapter SAS | PERC H355 front SAS | PERC H350 adapter SAS | PERC H350 Mini Monolithic SAS |
|---|---|---|---|---|
| RAID levels | 0, 1, 10 | 0, 1, 10 | 0, 1, 10 | 0, 1, 10 |
| Non–RAID | Yes | Yes | Yes | Yes |
| Enclosures per port | Not applicable | Not applicable | Not applicable | Not applicable |
| Processor | Broadcom RAID-onchip, SAS3816 chipset | Broadcom RAID-onchip, SAS3816 chipset | Broadcom RAID-onchip, SAS3816 chipset | Broadcom RAID-onchip, SAS3816 chipset |
| Battery backup unit | No | No | No | No |
| Local Key Management security | No | No | No | No |
| Controller queue depth | 1536 | 1536 | 1536 | 1536 |
| Secure enterprise key manager security | No | No | No | No |
| Non-volatile cache | No | No | No | No |
| Cache memory | Not applicable | Not applicable | Not applicable | Not applicable |
| Cache function | Write through, no read ahead | Write through, no read ahead | write through, no read ahead | write through, no read ahead |
| Max no of VDs in RAID mode | 32 | 32 | 32 | 32 |
| Max no of disk groups | 32 | 32 | 32 | 32 |
| Max no of VDs per disk group | 16 | 16 | 16 | 16 |
| Hot swap devices supported | Yes | Yes | Yes | Yes |
| Autoconfig | Yes | Yes | Yes | Yes |
| Hardware XOR engine | Yes | Yes | Yes | Yes |
| Online capacity expansion | Yes | Yes | Yes | Yes |
| Dedicated and global hot spare | Yes | Yes | Yes | Yes |
| Drives types | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s) |
| VD strip size | 64 KB | 64 KB | 64 KB | 64 KB |
| PCIe support | Gen 4 | Gen 4 | Gen 4 | Gen 4 |
| SAS/SATA maximum drive support |
|
|
|
|
| NVMe maximum drive support | Not applicable | Not applicable | Not applicable | Not applicable |
| Feature | PERC H755 adapter | PERC H755 front SAS | PERC H755N front NVMe | PERC H755 MX adapter | PERC H750 adapter SAS |
|---|---|---|---|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50 ,60 | 0, 1, 5, 6, 10, 50 ,60 |
| Non–RAID | Yes | Yes | Yes | Yes | Yes |
| Enclosures per port | Not applicable | Not applicable | Not applicable | Not applicable | Not applicable |
| Processor | Broadcom RAID-on-chip, SAS3916 chipset | Broadcom RAID-on-chip, SAS3916 chipset | Broadcom RAID-on-chip, SAS3916 chipset | Broadcom RAID-on-chip, SAS3916 chipset | Broadcom RAID-on-chip, SAS3916 chipset |
| Battery backup unit | Yes | Yes | Yes | Yes | Yes |
| Local Key Management security | Yes | Yes | Yes | Yes | Yes |
| Controller queue depth | 5120 | 5120 | 5120 | 5120 | 5120 |
| Secure enterprise key manager security | Yes | Yes | Yes | No | Yes |
| Non-volatile cache | Yes | Yes | Yes | Yes | Yes |
| Cache memory | 8 GB DDR4 2666 MT/s cache | 8 GB DDR4 2666 MT/s cache | 8 GB DDR4 2666 MT/s cache | 8 GB DDR4 2666 MT/s cache | 8 GB DDR4 2666 MT/s cache |
| Cache function | Write back, write through, no read ahead, and read ahead | Write back, write through, no read ahead, and read ahead | Write back, write through, no read ahead, and read ahead | Write back, write through, no read ahead, and read ahead | Write back, write through, no read ahead, and read ahead |
| Max no of VDs in RAID mode | 240 | 240 | 240 | 240 | 240 |
| Max no of disk groups | 240 | 240 | 240 | 240 | 240 |
| Max no of VDs per disk group | 16 | 16 | 16 | 16 | 16 |
| Hot swap devices supported | Yes | Yes | Yes | Yes | Yes |
| Autoconfig | Yes | Yes | Yes | Yes | Yes |
| Hardware XOR engine | Yes | Yes | Yes | Yes | Yes |
| Online capacity expansion | Yes | Yes | Yes | Yes | Yes |
| Dedicated and global hot spare | Yes | Yes | Yes | Yes | Yes |
| Drives types | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s), and Gen4 (16 GT/s) NVMe | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s), and Gen4 (16 GT/s) NVMe | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS |
| VD strip size | 64 KB, 128 KB, 256 KB, 512 KB, 1 MB | 64 KB, 128 KB, 256 KB, 512 KB, 1 MB | 64 KB, 128 KB, 256 KB, 512 KB, 1 MB | 64 KB, 128 KB, 256 KB, 512 KB, and 1 MB | 64 KB, 128 KB, 256 KB, 512 KB, 1 MB |
| PCIe support | Gen 4 | Gen 4 | Gen 4 | Gen 4 | Gen 4 |
| SAS/SATA maximum drive support |
|
| Not applicable | Limited by platform: 8 drives per controller |
|
| NVMe maximum drive support |
| Not applicable |
| Limited by platform:8 drives per controller | Not applicable |
