NetApp DS2246 Expansion Shelf (DS2246-10.8TB-R5-C) 12x 900GB 10K SAS HDD X423A-R5 6 G

Brand:
MPN:
DS2246-10.8TB-R5-C
Type:
Disk Shelves
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

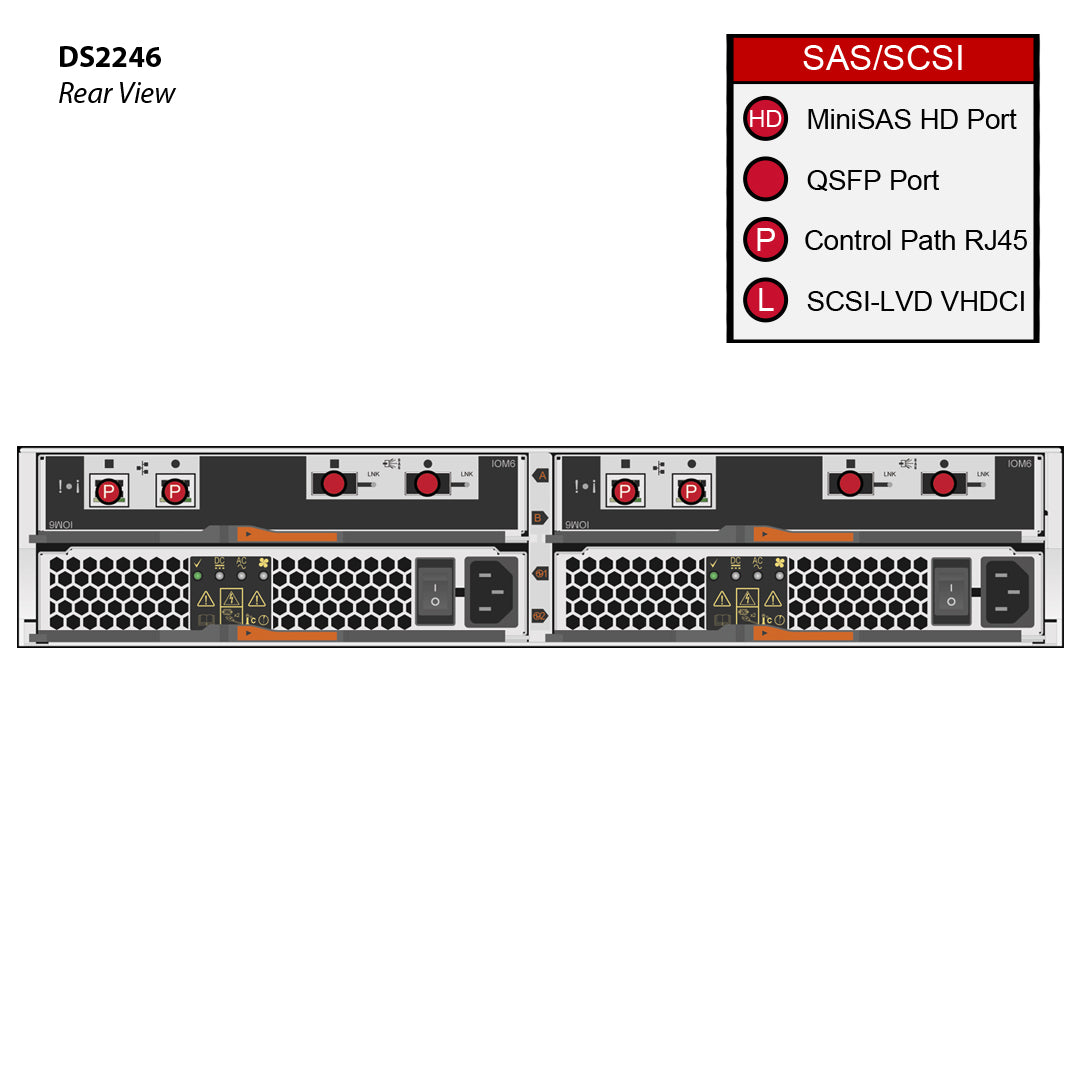

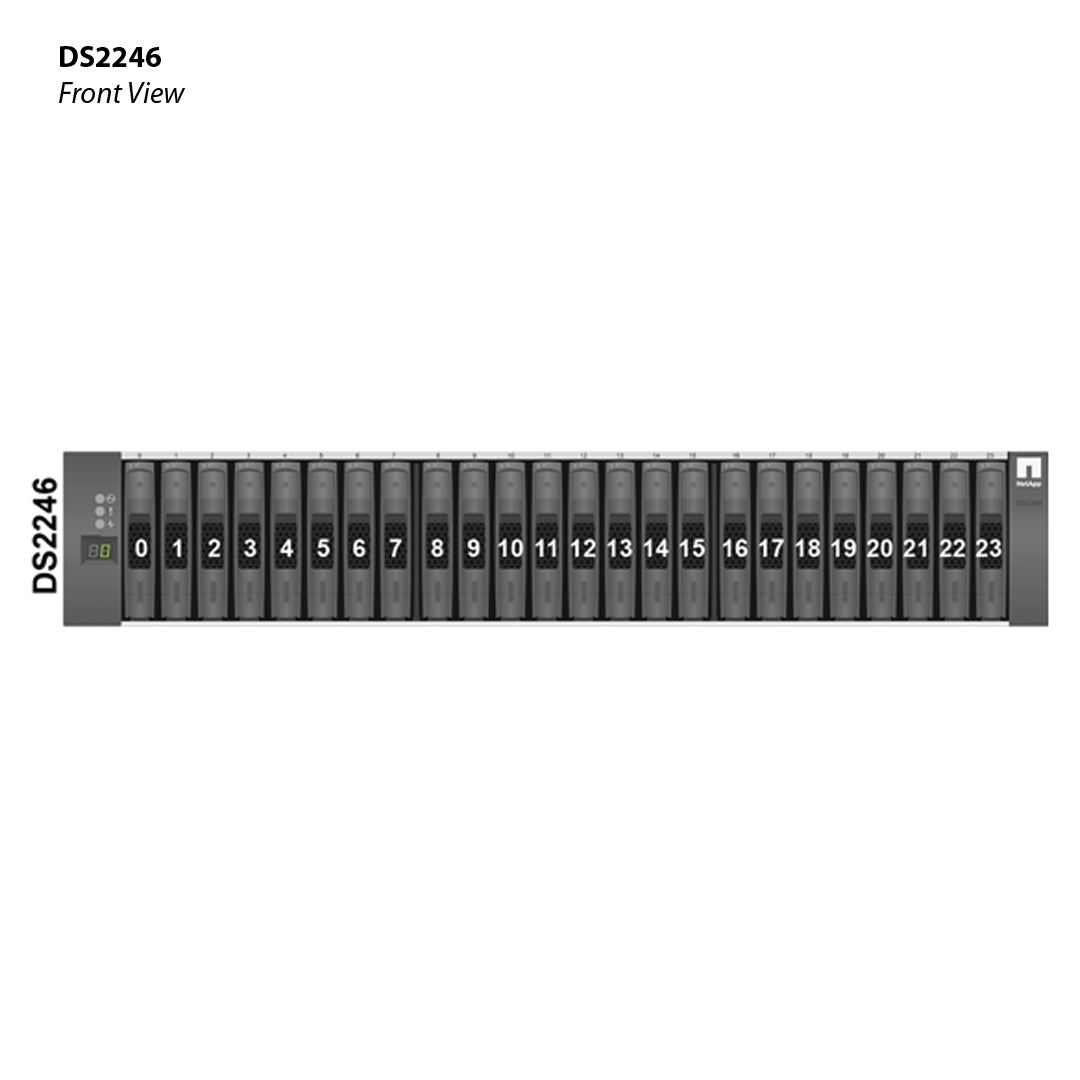

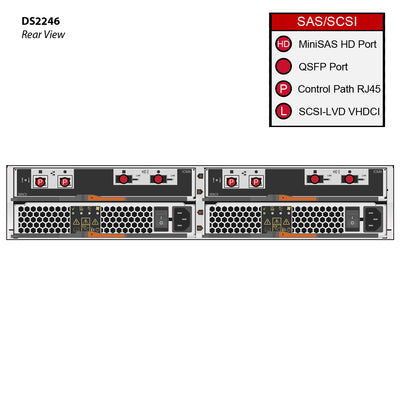

NetApp DS2246 - DS2246-10.8TB-R5-C, has 24 drive bays with 12 X423A-R5 (900GB 10K SAS) Disk Shelf achieves both storage and performance in a 2U (Rack Unit) 2.5" form factor, at speeds of 6 Gbps. This DS2246 comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:
  • 1X DS2246 NetApp Disk Shelf
  • 12x 900GB 10K SAS HDD 2.5" (X423A-R5) 6 G
  • 2x IOM6 Controller Module (X5713A-R5)
  • 2x Power Supplies with Fans - 750W, AC (X519A-R6)
  • 2x .5 QSFP to QSFP SAS Cables (X6557A-R6) (longer cables available please ask for custom order)
  • 1x Rail Kit (X-02654-00)
  • 2x Power Cables (X800E-R6)


Technical Specifications Physical Characteristics
  • Rack Unit(s): 2
  • Port(s): N/A
  • Drive Count: 24
  • Drive Speed(s): 6 Gbps
  • Drive(s):
    12 X423A-R5 (900GB 10K SAS)
  • Supported Controller(s): N/A
  • Weight: 35.27 lb (16 kg)
  • Height: 3.35'' (8.5 cm)
  • Width: 17.6'' (44.7 cm)
  • Depth: 19.06'' (48.4 cm)
  • Width w/ Mounting Flanges: 18.9'' (48 cm)
  • Depth w/ Cable Management: 20.2'' (51.3 cm)
Environmental Requirements Clearance Dimensions
  • Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C
  • Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Operating Relative Humidity: 20 to 80 %
  • Storage Relative Humidity: 10 to 95 %
  • Transit Relative Humidity: 10 to 95 %
  • Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m
  • Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Acoustic Noise - Sound Power: 6.9 bels
  • Acoustic Noise - Sound Pressure: 51 dBA
  • Input Power Voltage: 100 to 120, 200 to 240
  • Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm)
  • Rear Clearance (Cooling / Maintenance): 12.01'' (30.5 cm) / 12.01'' (30.5 cm)

Product Specs for NetApp DS2246-10.8TB-R5-C

Supported Drives

Part NumberEncryptionCapacityRPMChecksum
Drive Type: SAS
X341A-R6 No 900GB 10k BCS
X342A-R6 No 1.2TB 10k BCS
X343A-R6 No 1.8TB 10k BCS
X416A-R5[1]    Yes 600GB 10k BCS
X417A-R6[1]    Yes 900GB 10k BCS
X421A-R5 No 450GB 10k BCS
X422A-R5 No 600GB 10k BCS
X423A-R5 No 900GB 10k BCS
X425A-R6 No 1.2TB 10k BCS
X426A-R6 No 1.8TB 10k BCS
X427A[1]    Yes 1.8TB 10k BCS
X427B-R6[1]    Yes 1.8TB 10k BCS
Drive Type: SSD
X356A-R6 No 3.84TB N/A BCS
X357A No 3.84TB N/A BCS
X358A[1]    Yes 3.84TB N/A BCS
X365A-R6[1]    Yes 1.6TB N/A BCS
X371A No 960GB N/A BCS
X438A-R6 No 400GB N/A BCS
X439A-R6 No 1.6TB N/A BCS
X440A-R6[1]    Yes 800GB N/A BCS
X440B-R6[1]    Yes 800GB N/A BCS
X446A-R6 No 200GB N/A BCS
X446B-R6 No 200GB N/A BCS
X447A-R6 No 800GB N/A BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp DS2246

ModulePart NumberInterfaceMax Data RateMin ONTAP
IOM12 X5720A IN: miniSAS HD, OUT: miniSAS HD 12 Gbps 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
ModulePart NumberInterfaceMax Data RateMin ONTAP
IOM6 X5713A-R6 IN: QSFP, OUT: QSFP 6 Gbps 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.1, 7.3.4

Cables Compatibility for Module IOM12

Cables Compatibility for Module IOM6

Mktg Part NoMfg Part NoLengthEnd 1 / End 2DescriptionSupported Speed(s)Min OS
SAS 6/12 Gbps (Copper Cables)
NetApp Cable X66030A 112-00435 0.5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,0.5m 6/12 Gbps -
NetApp Cable X66020A-R6 112-00429 1m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,1m 6/12 Gbps -
NetApp Cable X66031A 112-00436 1m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,1m 6/12 Gbps -
NetApp Cable X66021A-R6 112-00430 2m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,2m 6/12 Gbps -
NetApp Cable X66032A 112-00437 2m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,2m 6/12 Gbps -
NetApp Cable X66033A 112-00438 3m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,3m 6/12 Gbps -
NetApp Cable X66022A-R6 112-00431 5m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,5m 6/12 Gbps -
NetApp Cable X66034A 112-00439 5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,5m 6/12 Gbps -
SAS 6/12 Gbps (Optical Cables)
NetApp Cable X66040A 112-00449 1m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,1m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66041A 112-00450 2m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,2m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66042A 112-00451 3m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,3m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66043A 112-00452 5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,5m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66047A 112-00456 5m MiniSAS HD / 4xLC Cable,Opt,miniSAS HD/LC,OM4,5m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66044A 112-00453 15m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,15m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66045A 112-00454 30m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,30m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66048A 112-00457 30m MiniSAS HD / 4xLC Cable,Opt,miniSAS HD/LC,OM4,30m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66046A 112-00455 50m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,50m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
Mktg Part NoMfg Part NoLengthEnd 1 / End 2DescriptionSupported Speed(s)Min OS
Ethernet 10/100 Mbps (Copper Cables)
NetApp Cable X6560-R6 112-00194 0.5m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,0.5m -
NetApp Cable X6584-R6 112-00290 1m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,1m -
NetApp Cable X6561-R6 112-00195 2m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,2m -
NetApp Cable X6585-R6 112-00291 3m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,3m -
NOFRU_ETH_CAT6_RJ45_5M
NetApp Cable X6562-R6 112-00196 5m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,5m -
NetApp Cable X6592-R6 112-00246 10m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,10m -
NetApp Cable X6593-R6 112-00247 20m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,20m -
NetApp Cable X6577-R6 112-00238 30m RJ45 / RJ45 Cable,Ethernet,CAT6,RJ45,30m -
SAS 3/6 Gbps (Copper Cables)
NetApp Cable X6557-R6 112-00176 0.5m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m 3/6 Gbps -
NetApp Cable X66020A-R6 112-00429 1m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,1m 6 Gbps -
NetApp Cable X6594-R6 112-00256 1m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,1m 3/6 Gbps -
NetApp Cable X66021A-R6 112-00430 2m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,2m 6 Gbps -
NetApp Cable X6558-R6 112-00177 2m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m 3/6 Gbps -
NetApp Cable X6595-R6 112-00255 3m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m 3/6 Gbps -
NetApp Cable X66022A-R6 112-00431 5m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,5m 6 Gbps -
NetApp Cable X6559-R6 112-00178 5m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m 3/6 Gbps -
NetApp Cable X6590-R6 112-00242 10m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,10m 3/6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1
NetApp Cable X6591-R6 112-00243 20m QSFP / QSFP Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,20m 3/6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1
SAS 3/6 Gbps (Optical Cables)
Optical Transceiver X65400A-R6 with Supported Cables
NetApp Cable X65400A-R6 332-00335, AFBR-79EQDZ-NA1, FTL410QE2C-N1, FTL410QE4C-N1, FTL410QL1C-N1 XCVR QSFP / MPO XCVR,QSFP,Opt,6Gb,SAS 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
Optical Cables
NetApp Cable X66000A-R6 112-00265 1m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,1m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66001A-R6 112-00266 2m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,2m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66002A-R6 112-00267 3m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,3m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66003A-R6 112-00268 5m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,5m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66008A-R6 112-00260 5m QSFP / 4xLC Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,5m 6 Gbps -
NetApp Cable X66010A-R6 112-00263 5m QSFP / 2xSC Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,5m 6 Gbps -
NetApp Cable X66012A-R6 112-00278 5m QSFP / 4xMT-RJ Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,5m 6 Gbps -
NetApp Cable X66014A-R6 112-00272 5m QSFP / 8x Simplex LC Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,5m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66016A-R6 112-00274 5m QSFP / 8x Simplex SC Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,5m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66018A-R6 112-00281 5m QSFP / 4xMT-RJ Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,5m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66004A-R6 112-00269 7m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,7m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66005A-R6 112-00270 15m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,15m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66011A-R6 112-00264 30m MPO / 4xSC Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,30m 6 Gbps -
NetApp Cable X66006A-R6 112-00271 30m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,30m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66009A-R6 112-00261 30m QSFP / 4xLC Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,30m 6 Gbps -
NetApp Cable X66013A-R6 112-00279 30m QSFP / 4xMT-RJ Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,30m 6 Gbps -
NetApp Cable X66015A-R6 112-00273 30m QSFP / 8x Simplex LC Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,30m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66017A-R6 112-00276 30m QSFP / 8x Simplex SC Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,30m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66019A-R6 112-00282 30m QSFP / 4xMT-RJ Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,30m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66007A-R6 112-00280 50m QSFP / QSFP Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,50m 6 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1

Supported Power Cords for NetApp DS2246

Marketing Part No.End 1 / End 2LengthDescription
Non-Cabinet Power Cords
X800B-R6 CEE 7/7 (Schuko) / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6 BS1363 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6 JIS-C-8303 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6 NEMA 5-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6 AS/NZS 3112 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6 SEV 1011 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6 IRAM 2073 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6 GB2099 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6 DHCR107-2-D1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6 SANS 164-1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6 SI32 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6 CEI 23-16 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6 NEMA 6-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6 CNS 10917-3 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6 NBR14136 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6 CNS10917/CNS690 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6 JIS-C-830 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6 IEC60320-C14 / IEC60320-C13 1.20 m Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35 IEC60320-C14 / IEC60320-C13 0.89 m Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43 IEC60320-C14 / IEC60320-C13 1.09 m Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64 IEC60320-C14 / IEC60320-C13 1.63 m Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6 IEC60320-C14 / IEC60320-C13 0.68 m Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp DS2246

Footnote: Supported in 2-post front-mount configuration only

Marketing Part No.Manufacturing Part No.Description
NetApp System Cabinet Rail Kits
X877B-R6 111-00596 Rail Kit II, NetApp Cabinet, R6
X8783A-R6 111-01110 Rail Kit III, NetApp Cabinet, R6
X87880A 111-03887 Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00 113-00232 Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 [1] 111-00232 Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5526A-R6 111-00593 Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6 111-00864 Kit,2-Post,Round-Hole
X5529A-R6 111-00310 Kit,4-Post,Swift,Square-Hole, 24"-32" Rail
Marketing Part No.Manufacturing Part No.Description

Field Replacement Unit Parts for NetApp DS2246

Marketing Part No.Manufacturing Part No.Description
Cabinets
X870F-C - Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C - Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C - Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A 111-03068 SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A TBD DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66032A 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66033A 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66034A 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66040A 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A 112-00453 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A 112-00454 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A 112-00455 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5 108-00268 Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5 108-00270 Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5 108-00277 Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6 108-00368 DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A 108-00399 DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6 108-00455 DSK DRV,8TB,7.2K,12G,DS212C
X322A 108-00551 DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6 108-00427 DSK DRV,4TB,7.2K,12G,DS212C
X339A 108-00426 DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6 108-00467 SSD,3.8TB,FAS2520/2554
X364A 108-00650 SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6 108-00470 SSD,1.6TB,NSE,DS4246,FAS2554
X374A 108-00573 SSD,960GB,12G,DS212C,W/MSW
X380A 108-00549 DSK DRV,10TB,7.2K,12G,DS212C
X388A 108-00885 DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6 108-00253 SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6 108-00319 SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6 108-00315 DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5 108-00298 Disk Drive,900GB 10K,2520/2220
X489A-R6 108-00322 Disk Drive,1.2TB 10K,2520/2220
X490A-R6 108-00425 Disk Drive,1.8TB 10K,FAS2520
X575A-R6 108-00370 SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6 108-00373 SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 108-00375 SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00 - Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C - Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6 - Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C - Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35 - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C - Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N - Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43 - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C - Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N - Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64 - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C - Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N - Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6 - Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C - Jumper Crd,In-Cab,C13-C14,-C
X800B-R6 - Power Cable,Continental Europe,R6
X800B-R6-C - Power Cable,Continental Europe,-C,R6
X800C-R6 - Power Cable,UK and Ireland,R6
X800C-R6-C - Power Cable,UK and Ireland,-C,R6
X800D-R6 - Power Cable,Japan,R6
X800D-R6-C - Power Cable,Japan,-C,R6
X800E-R6 - Power Cable,North America,R6
X800E-R6-C - Power Cable,North America,-C,R6
X800F-R6 - Power Cable,Australia/New Zealand,R6
X800F-R6-C - Power Cable,Australia/New Zealand,-C,R6
X800G-R6 - Power Cable,Switzerland,R6
X800G-R6-C - Power Cable,Switzerland,-C,R6
X800H-R6 - Power Cable,Argentina,R6
X800H-R6-C - Power Cable,Argentina,-C,R6
X800I-R6 - Power Cable,China,R6
X800I-R6-C - Power Cable,China,-C,R6
X800J-R6 - Power Cable,Denmark,R6
X800J-R6-C - Power Cable,Denmark,-C,R6
X800K-R6 - Power Cable,India,South Africa,R6
X800K-R6-C - Power Cable,India,South Africa,-C,R6
X800L-R6 - Power Cable,Israel,R6
X800L-R6-C - Power Cable,Israel,-C,R6
X800M-R6 - Power Cable,Italy,R6
X800M-R6-C - Power Cable,Italy,-C,R6
X800N - POWER CABLE,INDIA BIS
X800N-C - Power Cable,India BIS,-C
X800P-R6 - Power Cable,North America,250V,R6
X800P-R6-C - Power Cable,North America,250V,-C,R6
X800T-R6 - Power Cable,Taiwan,BSMI,R6
X800T-R6-C - Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6 - Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6 - Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C - Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6 - Power Cable,Japan,250V/15A
X800Y-R6-C - Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A 114-00148 PSU,913W
RailKit
X-02654-00 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A - IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp DS2246

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU / Hr Typical BTU / Hr Worst
Empty Shelf (with AC PSU)
X559A-R6 shelf empty with 2x AC PSUs - - - - - - - - - - -
Empty Shelf (without PSU)
X567A-R6 shelf empty without PSU - - - - - - - - - - -
Quickship Half Populated
DS2246-10.8TB-QS-R5 12x900GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.6 2.5 156 245 533 837
DS2246-10.8TB-QS-R5 12x900GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.79 1.23 153 241 523 823
DS2246-1005-12S-QS-R5 12x450GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.64 2.55 160 249 547 850
DS2246-1005-12S-QS-R5 12x450GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.81 1.25 157 245 536 837
DS2246-1007-12S-QS-R5 12x600GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.64 2.55 160 249 547 850
DS2246-1007-12S-QS-R5 12x600GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.81 1.25 157 245 536 837
DS2246-12X1.8TB-QS-R6 12x1.8TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.98 2.69 194 263 663 898
DS2246-12X1.8TB-QS-R6 12x1.8TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.98 1.32 191 258 652 881
DS2246-14.4TB-QS-R6 12x1.2TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.03 2.73 198 267 676 912
DS2246-14.4TB-QS-R6 12x1.2TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1 1.34 195 262 666 895
DS2246-AF-1.6-12N-0P-C 12x1.6TB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.6 2.29 156 224 533 765
DS2246-AF-1.6-12N-0P-C 12x1.6TB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.79 1.13 153 220 523 751
DS2246-SL-3.8-12S-QS 12x3.8TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 2.13 139 208 475 710
DS2246-SL-3.8-12S-QS 12x3.8TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.7 1.05 137 204 468 697
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 35.7 lb (16.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 2.33 139 228 475 779
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 35.7 lb (16.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.7 1.15 137 224 468 765
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 37.5 lb (17.0 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.72 2.53 69 256 236 874
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 37.5 lb (17.0 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.55 1.26 70 251 239 857
DS2246-SL016-4S-QS-R6 4x400GB,SSD 2 39.7 lb (18.0 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.13 1.83 110 179 376 611
DS2246-SL016-4S-QS-R6 4x400GB,SSD 2 39.7 lb (18.0 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.56 0.9 108 176 369 601
DS2246-SL024-12A-QS-R6 12x200GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL024-12A-QS-R6 12x200GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL048-12S-QS-R6 12x400GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.19 1.97 114 199 389 679
DS2246-SL048-12S-QS-R6 12x400GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.75 1.07 115 192 393 655
DS2246-SL096-12N-QS-R6 12x800GB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL096-12N-QS-R6 12x800GB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL096-12S-QS-R6 12x800GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL096-12S-QS-R6 12x800GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL192-12S-QS-R6 12x1.6TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.6 2.29 156 224 533 765
DS2246-SL192-12S-QS-R6 12x1.6TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.79 1.13 153 220 523 751
Quickship Fully Populated
DS2246-10-.8-1.8-24M-QS 20x1.8TB,NSE,4x800GB,NSE,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.58 281 350 960 1195
DS2246-10-.8-1.8-24M-QS 20x1.8TB,NSE,4x800GB,NSE,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.75 276 343 942 1171
DS2246-10-1.8-24N-QS 24x1.8TB,10K,SAS,NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.04 3.74 297 366 1014 1250
DS2246-10-1.8-24N-QS 24x1.8TB,10K,SAS,NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 1.84 292 359 997 1226
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA -40 (-60 to -40) - - - - 837 1468
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.76 4.28 274 428 936 1461
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.58 2.29 270 420 922 1434
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA -40 (-60 to -40) - - - - 847 1451
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.77 4.22 267 422 912 1441
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.64 2.29 266 418 908 1427
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA -40 (-60 to -40) - - - - 847 1451
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.77 4.22 267 422 912 1441
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.64 2.29 266 418 908 1427
DS2246-1021-24N-QS-R6 24x900GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.43 4.13 336 404 1147 1379
DS2246-1021-24N-QS-R6 24x900GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.69 2.03 330 396 1127 1352
DS2246-18TB-24M-QS-R6 20x900GB,SAS,4x200GB,SSD,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.92 3.44 277 334 945 1139
DS2246-18TB-24M-QS-R6 20x900GB,SAS,4x200GB,SSD,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.72 269 329 918 1122
DS2246-21.6TB-QS-R5 24x900GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.43 4.13 336 404 1147 1379
DS2246-21.6TB-QS-R5 24x900GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.69 2.03 330 396 1127 1352
DS2246-24x1.8TB-QS-R6 24x1.8TB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.04 3.74 297 366 1014 1250
DS2246-24x1.8TB-QS-R6 24x1.8TB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 1.84 292 359 997 1226
DS2246-28.8TB-QS-R6 24x1.2TB,10K,SAS 2 54.6 lb (24.8 kg) 6 Bels 51 dBA 100 (100 to 120) 2.85 3.55 283 354 966 1209
DS2246-28.8TB-QS-R6 24x1.2TB,10K,SAS 2 54.6 lb (24.8 kg) 6 Bels 51 dBA 200 (200 to 240) 1.46 1.8 276 348 942 1188
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS 24x1.6TB,SSD NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.63 2.34 161 230 550 786
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS 24x1.6TB,SSD NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.93 1.3 159 224 543 766
DS2246-S-1.6-1.8-24N-QS 20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed 2 54.0 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.55 281 347 960 1185
DS2246-S-1.6-1.8-24N-QS 20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed 2 54.0 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.74 276 341 942 1164
DS2246-SL-3.8-24S-QS 24x3.8TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.91 2.62 187 256 639 874
DS2246-SL-3.8-24S-QS 24x3.8TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.94 1.29 184 251 628 857
DS2246-SL001-24M-QS-R6 20x1.2TB,4x400GB,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.92 3.44 277 334 945 1139
DS2246-SL001-24M-QS-R6 20x1.2TB,4x400GB,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.72 269 329 918 1122
DS2246-SL002-24M-QS-R6 20x1.8TB,SAS,4x400GB,SSD,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.58 281 350 960 1195
DS2246-SL002-24M-QS-R6 20x1.8TB,SAS,4x400GB,SSD,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.75 276 343 942 1171
DS2246-SL009-24M-QS-R6 20x900GB,4x400GB,Mixed 2 52.5 lb (23.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.7 3.6 264 352 902 1202
DS2246-SL009-24M-QS-R6 20x900GB,4x400GB,Mixed 2 52.5 lb (23.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.33 1.77 259 345 884 1178
DS2246-SL048-24A-QS-R6 24x200GB,SSD 2 45.2 lb (20.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.6 3.41 161 343 550 1171
DS2246-SL048-24A-QS-R6 24x200GB,SSD 2 45.2 lb (20.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.9 1.67 162 336 553 1147
DS2246-SL096-24S-QS-R6 24x400GB,SSD 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.75 2.4 174 240 594 819
DS2246-SL096-24S-QS-R6 24x400GB,SSD 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.97 1.29 167 236 570 805
DS2246-SL192-24A-QS-R6 24x800GB,SSD 2 54.7 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.8 3.54 281 354 960 1209
DS2246-SL192-24A-QS-R6 24x800GB,SSD 2 54.7 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.75 276 344 942 1175
DS2246-SL192-24N-QS-R6 24x800GB,SSD,NSE 2 54.7 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.8 3.54 281 354 960 1209
DS2246-SL192-24N-QS-R6 24x800GB,SSD,NSE 2 54.7 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.75 276 344 942 1175
DS2246-SL384-24S-QS-R6 24x1.6TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.63 2.34 161 230 550 786
DS2246-SL384-24S-QS-R6 24x1.6TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.93 1.3 159 224 543 766




Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground Shipping time: 2-7 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-10 business days
Excludes weekends, holidays or weather delays.
3 Business Days Shipping time: 3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 3-6 business days
Excludes weekends, holidays or weather delays.
2 Business Days Shipping time: 2 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-5 business days
Excludes weekends, holidays or weather delays.
Overnight / Next Business Day Shipping time: 1 business day
Order processing time: 0-3 business days
Delivery time after order is placed: 1-4 business days
Excludes weekends, holidays or weather delays.


International Shipments

International Economy Shipping time: 4-6 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 5-9 business days
Excludes weekends, holidays or weather delays.
International Priority Shipping time: 1-3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-6 business days
Excludes weekends, holidays or weather delays.



For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Subscribe
