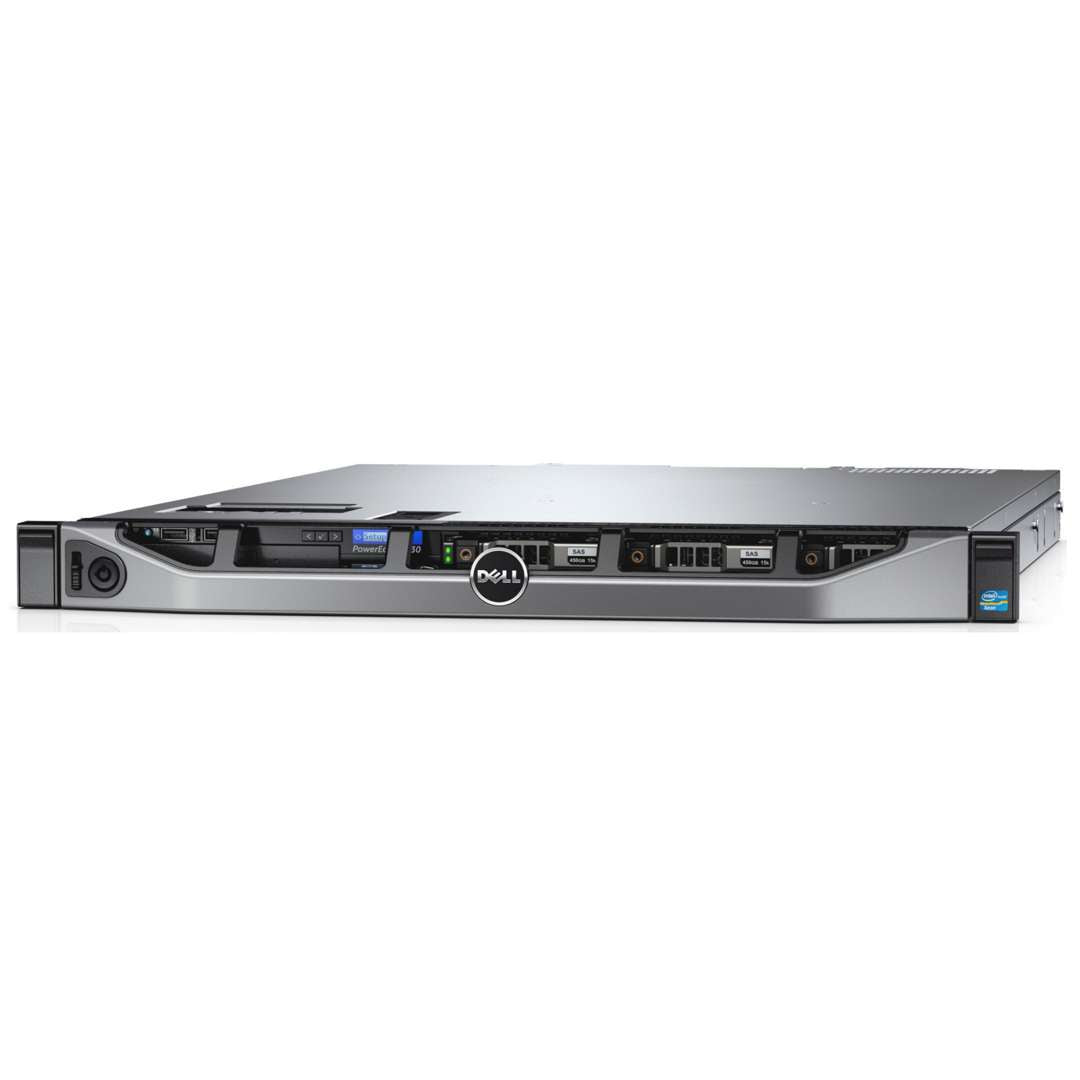

Introducing the PowerEdge R430 - a powerful, two-socket entry rack server designed for peak performance, configuration flexibility, high availability and intuitive management in a compact package. With its short-height (1U) and short-depth (24-inch) chassis, the R430 overcomes space constraints without compromising on performance or storage capacity.
The R430 boasts up to 12 DDR4 DIMMs, 2 PCIe 3.0 I/O slots and scalable internal storage capacity of up to 10 x 2.5" hard drives. This, combined with its energy-efficient processors, memory, power supplies, and Fresh Air 2.0 capability, ensures maximum operational efficiency, driving better ROI and saving time for IT administrators.
Equipped with the latest Intel Xeon E5-2600 v4 processors, the R430 delivers outstanding performance across a wide range of workloads, including high-performance computing (HPC), web tech and infrastructure scale-out, collaboration and productivity applications, surveillance and site security. It is also an excellent choice for dedicated backup or development server needs.
The integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller automates deployment, making it easier and quicker to deploy servers. IT administrators can monitor and update servers with intuitive, automated tools, while the expandable platform is ready for virtualization and high-availability clustering, allowing for greater versatility and adaptability to changing workload conditions.
Whether it's for HPC, web serving, infrastructure scale-out, surveillance, site security, or dedicated backup or development needs, the PowerEdge R430 delivers peak 2-socket performance in a compact package, making it an excellent fit for space-constrained data centers.
| Feature | PowerEdge R430 Technical specification | |
|---|---|---|
| Form factor | 1U rack server | |
| Dimensions and weight | H: 42.8 mm (1.68 in) W: 482.4 mm (18.99 in) with rack latches; 434.0 mm (17.08 in) without rack latches D: 607.0 mm (23.9 in) without bezel; 676.92 mm (26.7 in) with bezel | Weight 16.73 kg (36.88 lb) empty 19.9 kg (43.87 lb) maximum |
| Processor | Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Chipset: C610 Internal interconnect: Up to 9.6GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20 | |
| Memory | DDR4 RDIMMs at up to 2400MT/s 12 DIMM slots: 4GB/8GB/16GB/32GB | |
| I/O slots | 2 PCIe 3.0 | |
| Storage | SAS, SATA, nearline SAS, SSD Multiple R430 chassis available:
| |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 | |
| Communications | 4 x 1GbE LOM | |
| Power supplies | 450W, 550W PSU | |
| Management | Systems management
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) | Dell OpenManage Connections:
|
| Optional supported hypervisors | Citrix® XenServer, VMware vSphere® ESXi®, Red Hat® Enterprise Virtualization® | |
| Operating system | Microsoft® Windows Server® 2016 Microsoft Windows 2012 Microsoft Windows Server 2012 R2, x64 Red Hat® Enterprise Linux® VMware® vSphere® ESXi® SUSE® Linux Enterprise Server | |
| Rack support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. | |
 Spec Sheet | Technical Guide |
