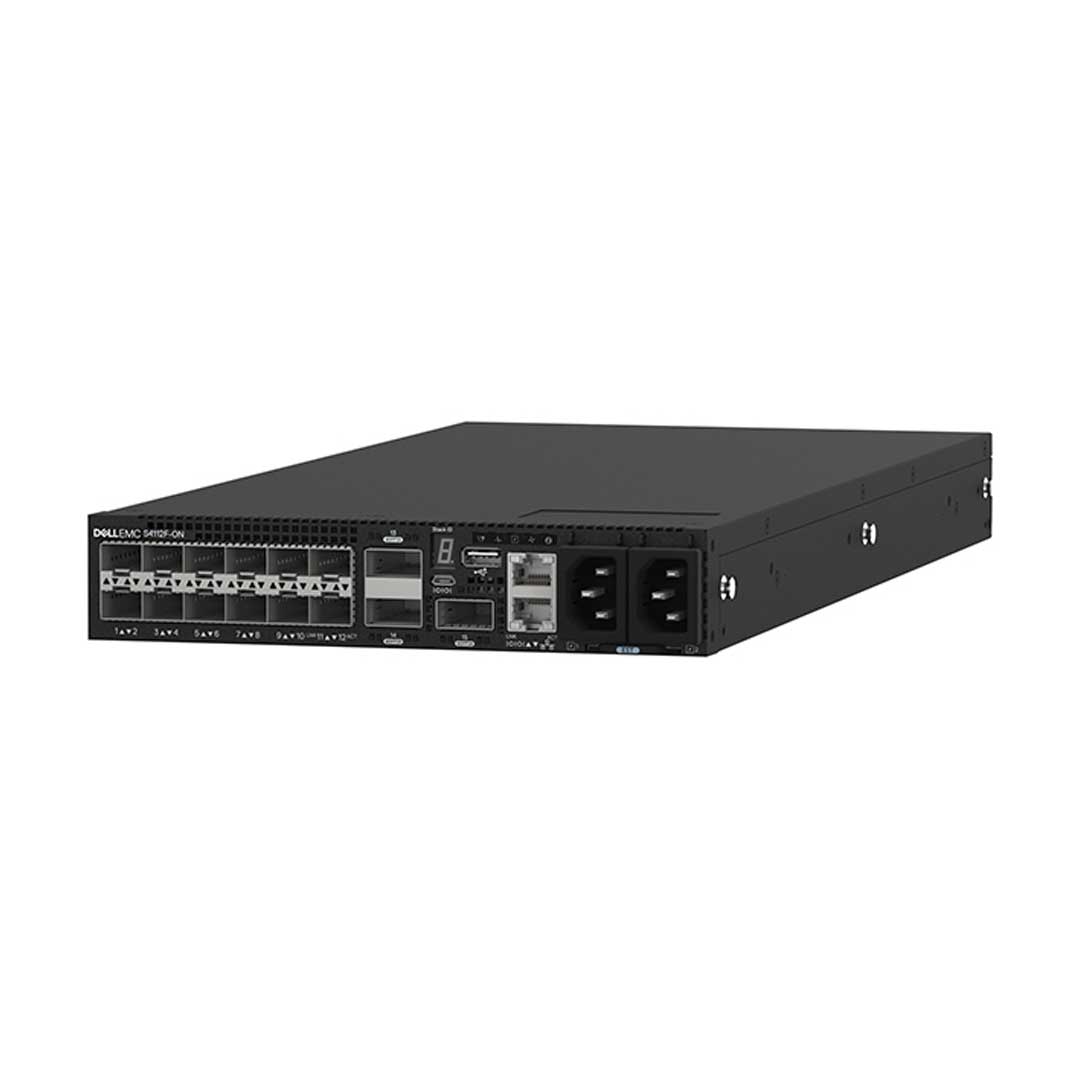

Dell EMC PowerSwitch S4112F-ON Switch
The Dell EMC PowerSwitch S4112F-ON Switch is a compact and high-performance network switch that delivers reliable and efficient connectivity for modern data center environments. With 12 x 10GbE ports and 3 x 100GbE ports, or 12 x 10GbE and 12 x 25GbE ports in breakout mode, this switch is ideal for organizations that require a high degree of network flexibility and scalability in a smaller form factor.
One of the key features of the PowerSwitch S4112F-ON is its Open Network Install Environment (ONIE) support. This allows for easy installation and integration with a variety of network operating systems, providing greater flexibility and customization options for your network environment.
The PowerSwitch S4112F-ON also features high bandwidth capabilities, with a total throughput of up to 1.44 Tbps, ensuring that your network is capable of handling high traffic loads with ease. It is designed to support the latest network protocols, including 25GbE and 100GbE, ensuring that your network is future-ready.
The S4112 is a 1RU, half-rack width 10/100GbE ToRswitch with up to 12 ports of 10GbE (SFP+) or up to 12ports of 10GBaseT ports, and up to 3 ports of 100GbE(QSFP28)
840Gbps (full-duplex) non-blocking, cut-throughswitching fabric delivers line-rate performance under fullload on S4112F-ON and S4112T-ON
Fixed, redundant power supply and fan forS4112
Open Network Install Environment (ONIE)
12 fixed SFP+ optical ports
3 fixed QSFP28 optical ports
180W Max Power Consumption
90W Typical Operating Power

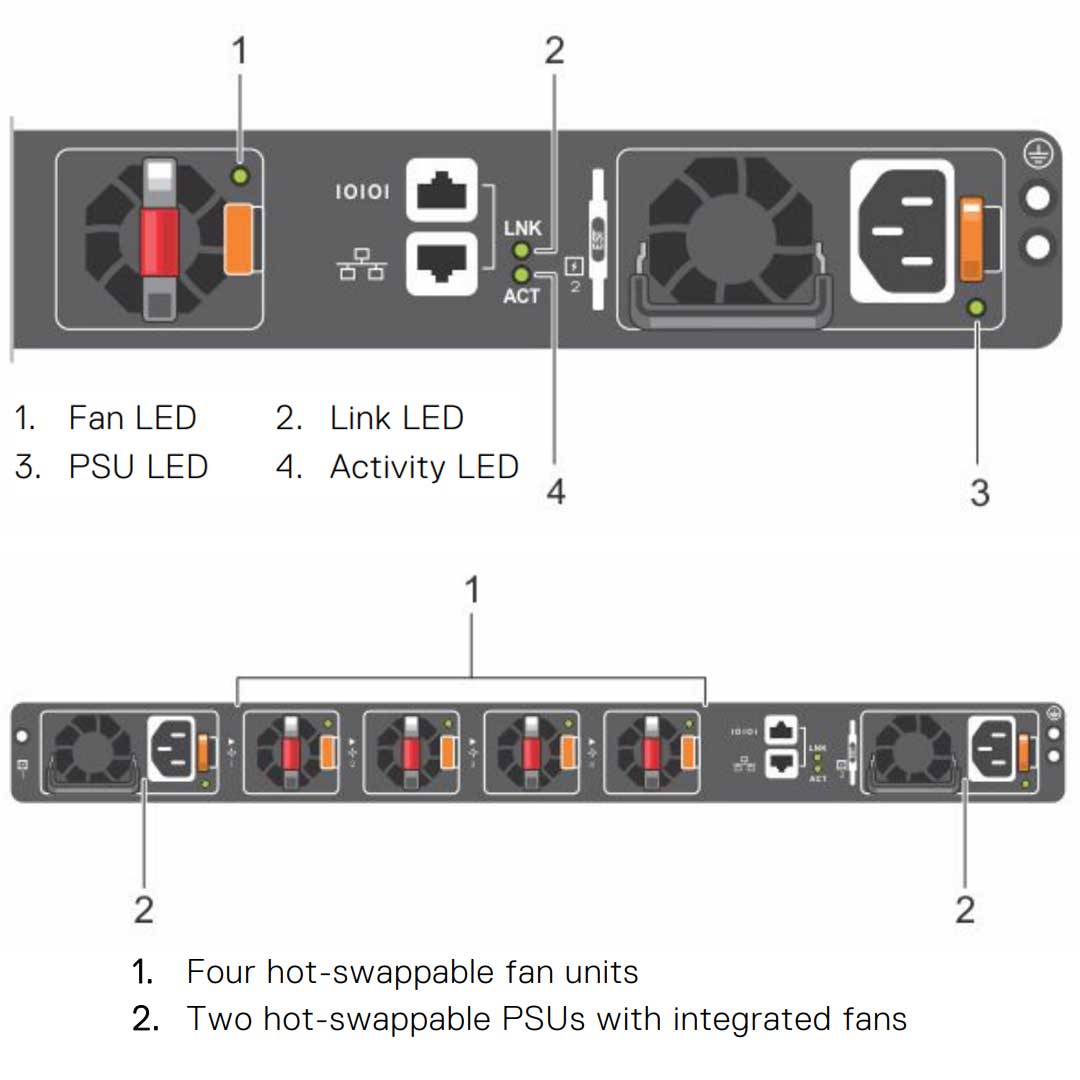

3 Fans | Hot swappable redundant fans (not applicableto S4112)
S4112F-ON AC or DC Normal airflow
3 Hot-Swappable Fans with airflow from the I/O side to the PSU side—normal
AC power supply with airflow from the I/O side to the PSU side—normal
DC power supply with airflow from the I/O side to the PSU side—normal
S4112F-ON AC or DC Reverse airflow
3 Hot-Swappable Fan with airflow from the PSU side to the I/O side—reverse
AC power supply with airflow from the PSU side to the I/O side—reverse
DC power supply with airflow from the PSU side to the I/O side—reverse
Key Features with Dell EMC SmartFabric OS10
Consistent DevOps framework across compute, storage and networking elements
Standard networking features, interfaces and scripting functions for legacy network operations integration
Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
Pervasive, unrestricted developer environment via Control Plane Services (CPS)
OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
Leverage common open source tools and best practices (data models, commit rollbacks)
Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV
