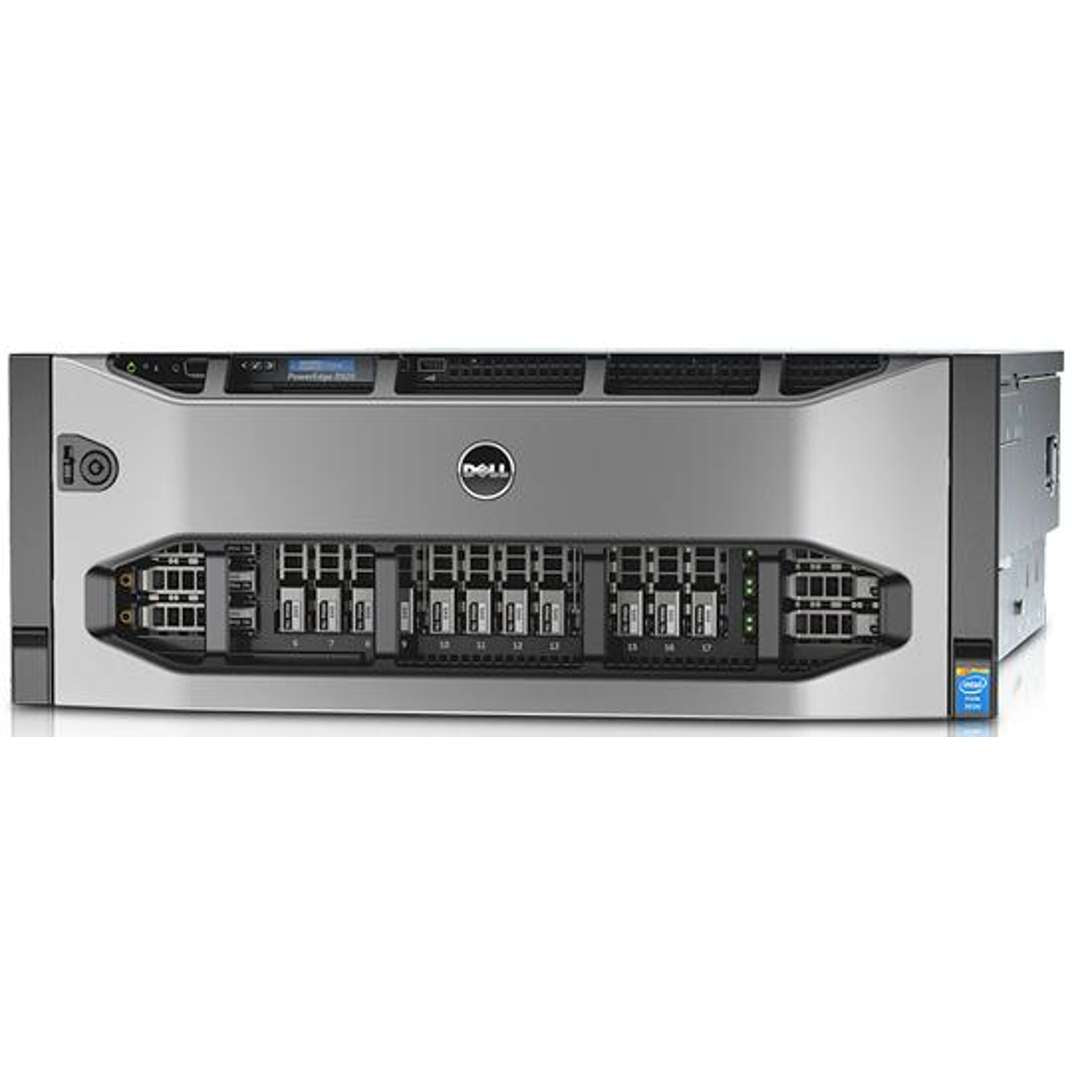

-*Image may differ from actaul product

Refurbished Dell PowerEdge R920 CTO Rack Server

Dell PowerEdge R920 CTO Rack Server

Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Refurbished Dell PowerEdge R920 CTO Rack Server

Quick Specs

Form Factor:

4U rack server

Processor | Max: 15 Cores

4x Intel E7-4800 v2 & E7-8800 v2

Memory | Max: 6TB

96 DDR3 RDIMM, LRDIMM 1600Mhz

Storage | Max: N/A

24 SFF SAS/NL-SAS/SATA (HDD/SSD)
Up to 8 NVMe supported

Rear Storage:

None

Boot Options:

USB
IDSDM (Virtualized Platforms only)

PCIe Slots:

Up to 10 PCIe slots
8 PCIe 3.0
+ 1 RAID slot
+ 1 NDC slot
+ 2 optional PCIe slots

Remote management:

iDRAC7 Express with Lifecycle Controller

LOM:

4 x 1GbE LOM

RAID controllers: (Supports Dual Controllers)

PERC 730P, H810, 6Gbps SAS HBA

Other Versions

Ideal for:

Database
High-Performance Computing (HPC)
Retail Servers

Designed to run mission-critical applications for midsized and large enterprises, the Dell PowerEdge R920 is a compute-intensive rack server with highly scalable memory and impressive I/O capabilities to match.

Scale to match the challenge

React at the speed of business with the R920’s highly scalable memory, I/O options and storage components. With four Intel Xeon E7 v2 processors, 96 DIMMs, 10 integrated PCI Express (PCIe) expansion slots and 24 internal storage drives, the R920 gives you processing power, flexibility and capacity for growth. Build out your SAN capacity as your business grows. Keep pace with the increasing data demands of large enterprise applications with H730P PERC, dual PERC capability and up to eight NVMe Express Flash PCIe SSDs.

Get results faster

Accelerate the time it takes enterprise applications to deliver services by eliminating the chokepoint — the speed of access to data. Use the R920’s 24 internal storage drives, or take advantage of its 10 PCIe expansion slots to drive large scale SAN storage. With options like high-performance 12Gbps SAS drives, dual RAID controller capabilities and Express Flash NVMe devices, you can reduce storage access times and improve overall application efficiency

Unleash scalable performance

Perform more transactions in less time with the massive memory footprint and tremendous caching capacity of the PowerEdge R920, the most powerful rack server in the PowerEdge portfolio. It introduces to the PowerEdge lineup the next generation of Intel Xeon processor E7 v2 product family, which combines up to 15 cores per processor with a large memory capacity, high-performing threads and hardware-based advanced reliability features designed to:

Process and analyze large amounts of data in real time
Deliver real-time business intelligence
Drive faster decision making
Increase productivity and profitability

Operate confidently

Keep your data center running in top condition with the enhanced reliability features of the PowerEdge R920, including:

Intel Run Sure technology that helps improve system diagnostic and predictive failure analysis to reduce service costs and increase system uptime
Dell Fault Resilient Memory that provides a protected hypervisor memory zone for VMware environments and Dual SD redundant hypervisor for highly available failsafe virtualization
Redundant hot-plug power supply units and fans

System Cooling - Heatsink and Fans

With 4 Processors you'll need Large Heatsinks with plenty of airflow. The Dell R920 has Six hot swappable fans that are mounted in a fan gantry located in the chassis between the hard drive bay and the processors. The fans are placed in the Dimm Riser Cage. Each fan has a blind mate 2x2 connector that plugs directly into the fan tray. An additional fan, integrated in each power supply provides additional cooling for the whole system.

Image of the Dell R920 Dimm Riser Cage that holds 6 Hot Swappable Fans.

Memory

The R920 supports up to 6TB of LRDIMM memory (with 96 x 64GB LRDIMMs); up to 3TB of LRDIMM memory (with 96 x 32GB LRDIMMs) and up to 1.5TB of RDIMM memory (with 48 x 16GB RDIMMs.)

In addition to supporting registered DIMMs (RDIMM), the R920 supports load reduced DIMMs (LRDIMM), which use a buffer to reduce memory loading and provide greater density, allowing for the maximum platform memory capacity. High memory density provides a richer, no compromise virtualization environment.

Capacity (GB)	Speed (MT/s)	Type	Ranks per DIMM	Data width	SDDC support	Voltage
4	1600	RDIMM	1	x8	Advanced ECC	1.35
8	1600	RDIMM	1	x4	lockstep mode	1.35
16	1600	RDIMM	2	x4	lockstep mode	1.35
32	1600	LRDIMM	4	x4	lockstep mode	1.35
64	1600	LRDIMM	8	x4	lockstep mode	1.35

PCIe Configurations

Expand IO capabilities

Gain up to 100 percent more IOPS performance than previous-generation PowerEdge servers with the H730P PowerEdge RAID Controller (PERC), a high-performance RAID controller for direct-attached storage (DAS). Taking full advantage of 12Gbps SAS throughput, this PERC enables workload-optimized performance, with RAID6 and RAID60 as standard features. Agentless management through iDRAC7 enables PERC configuration, deployment, updating and monitoring through a simple GUI or command line interface.

With 32 PCIe lanes available from each E7 v2 processor in the system, the R920 provides greatly expanded PCIe slot capability over previous‐generation PowerEdge servers. Dell designed the R920 to be PCIe‐3.0 compliant to take full advantage of the processor capabilities.

Slot 1: half‐length, full‐height, PCIe 3.0 x8 (x24 connector), baseboard
Slot 3: half‐length, full‐height, PCIe 3.0 x8 (x16 connector), baseboard
Slot 4: half‐length, full‐height, PCIe 3.0 x16 (x16 connector), baseboard
Slot 5: half‐length, full‐height, PCIe 3.0 x16 (x16 connector), baseboard
Slot 6: half‐length, full‐height, PCIe 3.0 x16 (x16 connector), baseboard
Slot 7: half‐length, full‐height, PCIe 3.0 x16 (x16 connector), baseboard
Slot 8: half‐length, full‐height, PCIe 3.0 x16 (x16 connector), baseboard
Slot 9: half‐length, full‐height, PCIe 3.0 x16 (x24 connector), baseboard
Slot 1/1: full‐length, full‐height, PCIe 3.0 x4 (x8 connector), left riser
Slot 2/2: half‐length, full‐height, PCIe 3.0 x4 (x8 connector), left riser
Slot 1/9: full‐length, full‐height, PCIe 3.0 x8 (x16 connector), right riser
Slot 2/10: half‐length, full‐height, PCIe 3.0 x8 (x16 connector)

Networking Solutions

The PowerEdge R920 offers rack network daughter card (RNDC) options which provide a custom solution that contains a complete network interface controller (NIC) subsystem. The R920 supports one RNDC card instead of the traditional LAN on motherboard (LOM) design. RNDC offer the features and benefits of a traditional LOM subsystem (including NC‐SI management interface) but with expanded features and added flexibility as RNDCs provide an easy upgrade path from 1GB to 10GB LAN speeds.

Storage Controllers

The R920 supports the new PERC 8 family of controllers with improved functionality and faster performance.

The R920 optionally supports a dual-PERC configuration, which enables more flexible PERC usage, for example, dedicating the highest IO requirements to one PERC that leverages higher-performance SSDs while the other PERC can control lower-priority workloads using the HDD storage.

Controller	Description	Features	RAID modes supported	Form factor	Usage model
PERC H810 External	Eight‐port, external and 6Gb/s PCIe RAID controller	Includes 1GB NV DDR3 cache, premium performance and feature set, security SED/EKMS, and SSD as cache	0, 1, 5, 6, 10, 50, 60	Adapter	Premium performance
PERC H730P Internal	12Gb/s SAS/6Gb/s SATA PCIe 3.0 2x4 internal adapter	PCIe 3.0 support and 12Gb/s SAS (SAS 3.0) host interface, 2GB NV Flash backed cache; capable of RAID as well as Non‐RAID (JBOD Mode) operations	0, 1, 5, 6, 10, 50, 60	Adapter	Premium performance

Power & Dimensions

Power Supply Units

There are four power supply units available for the PowerEdge R920: which have auto sensing and auto switching capability:

750W AC Platinum
750W AC Titanium
1100W AC Platinum
1100W DC

Dimensions

6.8 in (4U) height (172.6 mm)
18.99 in width (482.4 mm)
31.59 in depth (802.3 mm) with PSU and bezel
29.65 in depth (753 mm) without bezel

Features	PowerEdge R920 technical specification
Form factor	4U rack
Processors	Intel« Xeon« processor E7-4800 v2 and E7-8800 v2 product families (up to 4); Intel Xeon processor E7-2800 v2 product family (up to 2)
Internal interconnect	Intel QuickPath Interconnect (QPI)
Chipset	Intel C602J
Memory	Up to 6TB (96 DIMM slots):4GB/8GB/16GB/32GB/64GB DDR3L, RDIMM, LR-DIMM up to 1600MT/s
I/O slots	Up to 10 PCIe slots; 8 PCIe 3.0, + 1 RAID slot, + 1 NDC slot + 2 optional PCIe slots
RAID controller	Internal controllers: PERC H730P	External controllers: PERC H810 6Gbps SAS HBA
Drive bays	ò Up to 24 2.5ö hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD ò Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)
Supported drives	Hot-plug hard drive options: 2.5ö SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K) 2.5ö PCIe SSDs: Dell PowerEdge NVMe Express Flash PCIe SSD
Embedded NIC	Embedded NICs: Broadcom« 5720 QP 1Gb Network Daughter Card Broadcom 57800 2x10Gb DA/SFP+ + 2x1Gb BT Network Daughter Card Broadcom 57800 2x10Gb BT + 2x1Gb BT Network Daughter Card Broadcom 57840S Quad Port 10Gb SFP+ Direct Attach Rack Network Daughter Card Intel Ethernet I350 QP 1Gb Network Daughter Card Intel X520 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, Network Daughter Card Intel Ethernet X540 10Gb BT DP + I350 1Gb BT DP Network Daughter Card
Power supplies	Hot-plug redundant PSUs: 750W AC, 1100W AC and DC
Availability	Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
Video	Matrox« G200 with 8MB memory
Remote management	iDRAC7 with Lifecycle Controller ò iDRAC7 Express (default) ò iDRAC7 Enterprise (upgrade option) ò 8GB or 16GB vFlash media (upgrade options)
Systems management	IPMI 2.0 compliant Dell OpenManage Essentials Dell OpenManage Mobile Dell OpenManage Power Center Dell OpenManage Integrations: ò Dell OpenManage Integration Suite for Microsoft System Center ò Dell OpenManage Integration for VMware« vCenter Dell OpenManage Connections: ò HP Operations Manager, IBM Tivoli« Netcool«, and CA Network and Systems Management ò Dell OpenManage Plug-in for Oracle Database Manager
Operating systems	Microsoft« Windows Server« 2012 R2 (includes Hyper-V«) Microsoft Windows Server 2012 (includes Hyper-V) Novell« SUSE« Linux Enterprise Server Red Hat« Enterprise Linux« VMware vSphere« ESXiÖ For more information on specific versions and additions, visit Dell.com/OSsupport.
Recommended support	Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit Dell.com/ServiceDescriptions.

Specification	PowerEdge R920	PowerEdge R910
Chassis	Rack 4S/4U	Rack 4S/4U
Processors	Intel Xeon processor E7‐4800 v2 and E7‐8800 v2 product families (up to 4); Intel Xeon processor E7‐2800 v2 product family (up to 2)	Intel Xeon processor E7 4800 and E7‐8800 product families
Memory	96 DIMM slots, up to 6TB	64 DIMM slots, up to 2TB
Drive bays	Up to 24 2.5” hot‐plug 12Gb/6Gb SAS HDD or SAS/SATA SSD Up to 8 front‐accessible Express Flash NVMe PCIe SSD (PCIe 3.0)	Up to 16 2.5” SATA SSD, SAS, nearline SAS, or SATA drives
RAID	PERC H730P, H810 Dual PERC option	PERC H200, H700, H800
PCI slots	8 PCIe 3.0 slots (two x8 + six x16) Optional PCIe riser to add two additional slots for 10 total	7 PCIe 2.0 slots Optional PCIe riser to add 3 additional slots for 10 total
Onboard NICs	Flexible LOM options	2 options – (1) 4 x1GbE or (2) 2 x1GbE + 2 x 10Gb
Power supplies and power efficiency	Hot‐plug redundant PSUs: 750W AC Platinum 750W AC Titanium 1100W (AC & DC)	Hot‐plug redundant PSUs: 750W AC Gold 1100W AC Gold
Management	Dell OpenManage portfolio	Dell OpenManage portfolio
Remote Management	iDRAC7 Express with Lifecycle Controller (standard) iDRAC7 Enterprise with Lifecycle Controller (optional)	iDRAC6 with Lifecycle Controller
Availability	Hot‐plug drives, Hot‐plug power supply units Hot‐plug fans	Hot‐plug drives, Hot‐plug power supply units Hot‐plug fans
