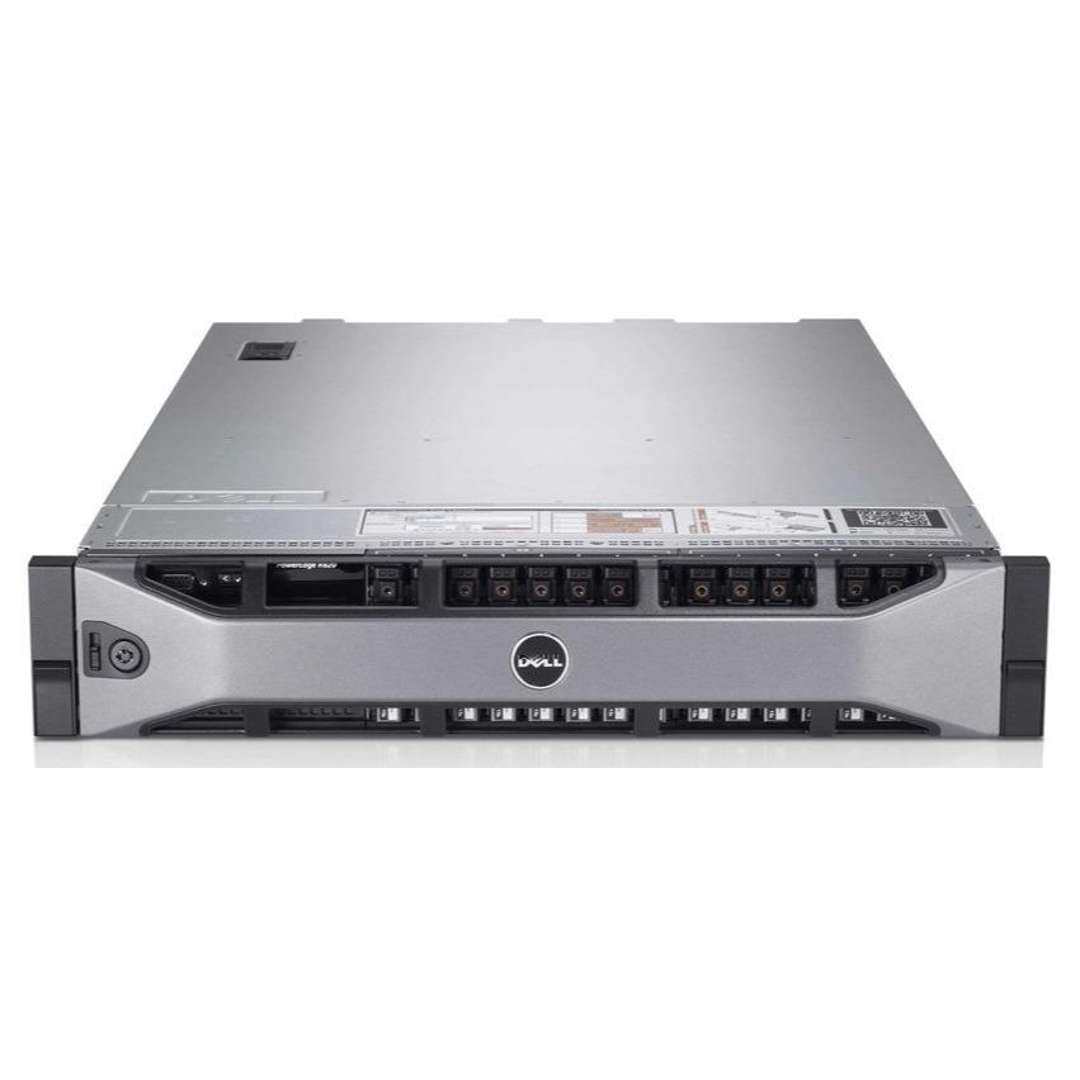

Dell PowerEdge R820 Rack Server Chassis (16x2.5")


Price: Request a Quote

Brand:
MPN:
DPE-R820-16x2.5-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R820 Rack Server Chassis (16x2.5")

Quick Specs

Form Factor:

2U rack server

Processor | Max: 8 Core

2x or 4x Intel E5-4600

Memory | Max: 1.5TB

48 DDR3 RDIMM 1600Mhz

Storage | Max: 16TB

16 SFF SAS/SATA (HDD/SSD)

Rear Storage:

None

Boot Options:

USB
IDSDM (Virtualized Platforms only)

PCIe Slots:

Up to 7 Gen: 2.0
-Two x16 half-length, full-height
-One x8 half-length, full-height
-Three x8 half-length, half-height
-One x8 half-length, full-height for the RAID controller

Remote management:

iDRAC7 Express with Lifecycle Controller

LOM:

Broadcom® 5720 4x1Gb Base-T

RAID controllers (PERC 8) | Max: 2

S110 (Software RAID)
PERC H310, H710, H710P, H810, 6Gbps SAS HBA
Default Mini-Mono unless PCIe card installed is between half-length and ¾-length, then use the adapter-type PERC.

GPU | Max: 2

Supported

Ideal for:

  • Database
  • High-Performance Computing (HPC)
  • Retail Servers
  • Virtual Desktop Interface (VDI)
  • Virtualization

The Dell PowerEdge R820 is designed to excel at running a wide range of applications and virtualization environments for both mid-size and large enterprises, the Dell PowerEdge R820 rack server is a compute-intensive performance platform with highly scalable memory (up to 1.5TB) and impressive I/O capabilities to match. With four Intel Xeon E5 processors, and the ability to support dual RAID controllers, the R820 can readily handle very demanding, mission critical workloads, like Enterprise Resource Planning (ERP), data warehousing, e-commerce, Virtual Desktop Infrastructure (VDI), databases, and data node High Performance Computing (HPC.)


Manage data overload

Keep pace with the explosion of data in the virtual age with the flexible, powerful I/O and storage capabilities of the R820. Up to 16 internal hard drives and integrated PCIe Gen3-enabled expansion slots greatly increase your capacity, while optional hot-plug, front-access PCIe SSDs (up to 4) enable performance-enhancing, in-box storage tiering. Moreover, Dell Select Network Adapters, our flexible embedded NIC technology, let you choose the right network fabric to match your needs without using up a valuable PCIe slot.


Accelerate the solution

Boost the performance of your HPC or 2D VDI environment by combining the PowerEdge R820’s memory density with an optional Graphics Processing Unit (GPU) accelerator. Choose from a range of GPU options for greater assisted performance.


Concentrated power and capacity

Enhance data center application capacity by expanding your virtual environment using the massive memory footprint, I/O (input/output) options, processing power and flexible fabric choices of the PowerEdge R820.


Virtualize more with the R820

Maximize your data center’s application capacity by expanding your virtual environment using the PowerEdge R820’s large memory footprint, I/O options, flexible fabric choices, and up to 32 cores in a four-processor configuration. Choose an industry-leading hypervisor and take advantage of our system management capability to manage both physical and virtual assets. The R820 can also help maximize your virtual machines’ uptime using redundant failsafe hypervisors on its Internal Dual SD Module. Finally, Dell’s Virtual Integrated System (VIS) solution lets you enable complex virtualization environments in just a few mouse clicks.



Peak server performance

Tap the improved, state-of-the-art processing power of the Intel Xeon processor E5-4600 and E5-4600 v2 product families and hyper-dense, 48-DIMM memory. Built using 22-nanometer process technology with up to twelve cores per processor, the Intel Xeon processor is designed for super-fast performance for compute-intensive tasks.


Backplane Configuration Options

This system can support Dual RAID Controllers. You can install one 8 Bay backplane along with 4 Bay PCIe SSD Backplane. Each backplane can be connected to different PERC Controllers in the rear. Below are the configuration options supported for the Dell PowerEdge R820 Rack Server.

  • 8 x 2.5-inch drives
  • 8 x 2.5-inch drives plus 4 x 2.5-inch Express Flash PCIe SSDs
  • 8 + 8 x 2.5-inch drives
  • 16 x 2.5-inch drives
Note: A system cannot be upgraded or reconfigured after the point of purchase.

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeaturesPowerEdge R820 technical specification
Form factor2U rack
ProcessorsIntel Xeon processor E5-4600 product family
Processor sockets4
Interna interconnect2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s
Cache2.5MB per core; core options: 4, 6, 8
ChipsetIntel C600
MemoryUp to 1.5TB (48 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MHz
I/O slots7 PCIe slots: Two x16 half-length, full-height One x8 half-length, full-height Three x8 half-length, half-height One x8 half-length, full-height for the RAID controller
RAID controllerInternal controllers: PERC H310 PERC H710 PERC H710PExternal HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA
Drive baysUp to sixteen 2.5 hot-plug SAS, SATA, or SSD
Maximum internal storage16TB
Hard drivesHot-plug hard drive options: 2.5 PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) Self-Encrypting Drives available
Embedded NICBroadcom Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) Broadcom Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Power supplyPlatinum efficiency 750W or Platinum+ efficiency 1100W power supplies Auto-ranging power supplies
AvailabilityHigh-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug redundant fans; optional bezel; luggage-tag; ECC memory, interactive LCD screen; extended thermal support; ENERGY STAR compliant, extended power range; Switch Agnostic Partitioning (SWAP) Remote management iDRAC7 Express (default) or iDRAC7 Enterprise (upgrade option), both with Lifecycle Controller 8GB or 16GB vFlash media (upgrade options)
Systems managementIPMI 2.0 compliant Dell OpenManage Essentials and Dell Management Console Dell OpenManage Power Center Dell OpenManage Connections: Dell OpenManage Integration Suite for Microsoft System Center Dell plug-in for VMware vCenter HP Operations Manager, IBM Tivoli Netcool , and CA Network and Systems Management
Rack supportReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks)
Operating systemsMicrosoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) SUSE Linux Enterprise Server Red Hat Enterprise Linux Optional embedded hypervisors: Citrix XenServer VMware vSphere For more information on the specific versions and additions, visit Dell.com/OSsupport.

Compare Servers

Feature PowerEdge R810 PowerEdge R820
Chassis 2U rack 2U rack
Processors IntelXeonprocessors 6500, 7500, E7-2800, E7-4800 and E7-8800 series Intel Xeon processor E5-4600 product family
Internal interconnect Intel QuickPath Interconnect Intel QuickPath Interconnect
Memory 32 x DDR3 RDIMM and UDIMM Up to 1TB 48 x DDR3 RDIMM, UDIMM and LRDIMM Up to 1.5TB
Hard drive bays (hot-plug) 6 x 2.5” 16 x 2.5”
RAID controller PERC H200, H700, H800 PERC H310, H710, H710P, H810 Dual PERC option
Express Flash drives N/A Up to 4 Flash Express drives
PCI slots 7 PCIe 2.0 slots 7 PCIe 3.0 slots
Embedded NICs 4 x 1GbE with optional TOE Select Network Adapter: minimum configuration of 4 x 1GbE, 10GbE (optional)
Power supplies Hot-plug, redundant 1100W AC Hot-plug, redundant 750W AC, 1100W AC, 1100W DC
Dell OpenManage Systems Management Dell OpenManage
Lifecycle Controller 1.x
iDRAC6 (Express or Enterprise) with Lifecycle Controller 1.x
OpenManage Essentials
OMSA Agent
OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller)
OpenManage Integrations and Connections
iDRAC7 Express with Lifecycle Controller (standard option)
Support for internal GPU No Yes
Power efficiency Gold Titanium
Availability Hot-plug drives
Hot-plug redundant cooling
Hot-plug redundant power supply units
Internal dual SD modules
Hot-plug drives
Hot-plug redundant cooling
Hot-plug redundant power supply units
Internal dual SD modules
