Price: Configure for Price
Get up to 40% greater performance and improved energy efficiency in the same award-winning PowerEdge C6000 shared infrastructure chassis with the latest Intel Xeon E5-2600 v2 processors.
High-performance workloads such as seismic processing, video rendering and scientific simulations rely heavily on compute performance, memory bandwidth, and overall efficiency to drive time and cost savings that impact a server’s total cost of ownership (TCO).
The next-generation Dell PowerEdge C6220II servers provide an ideal solution for such demanding environments and feature the latest Intel Xeon E5-2600 v2 processors for improved performance and efficiency. This scale-out building block is a true workhorse with up to four 2-socket server nodes in a highly-flexible 2U shared infrastructure chassis.
With up to 24 cores per node, memory bandwidth up to 1866MT/s, and dynamic drive assignment, the PowerEdge C6220II delivers new levels of performance that can be tailored to customer requirements while offering increased flexibility and reliability over traditional rack mounted servers.
The PowerEdge C6220II allows you to tailor your environment to specific workload needs with numerous options for compute, storage and connectivity within one advanced 2U chassis.

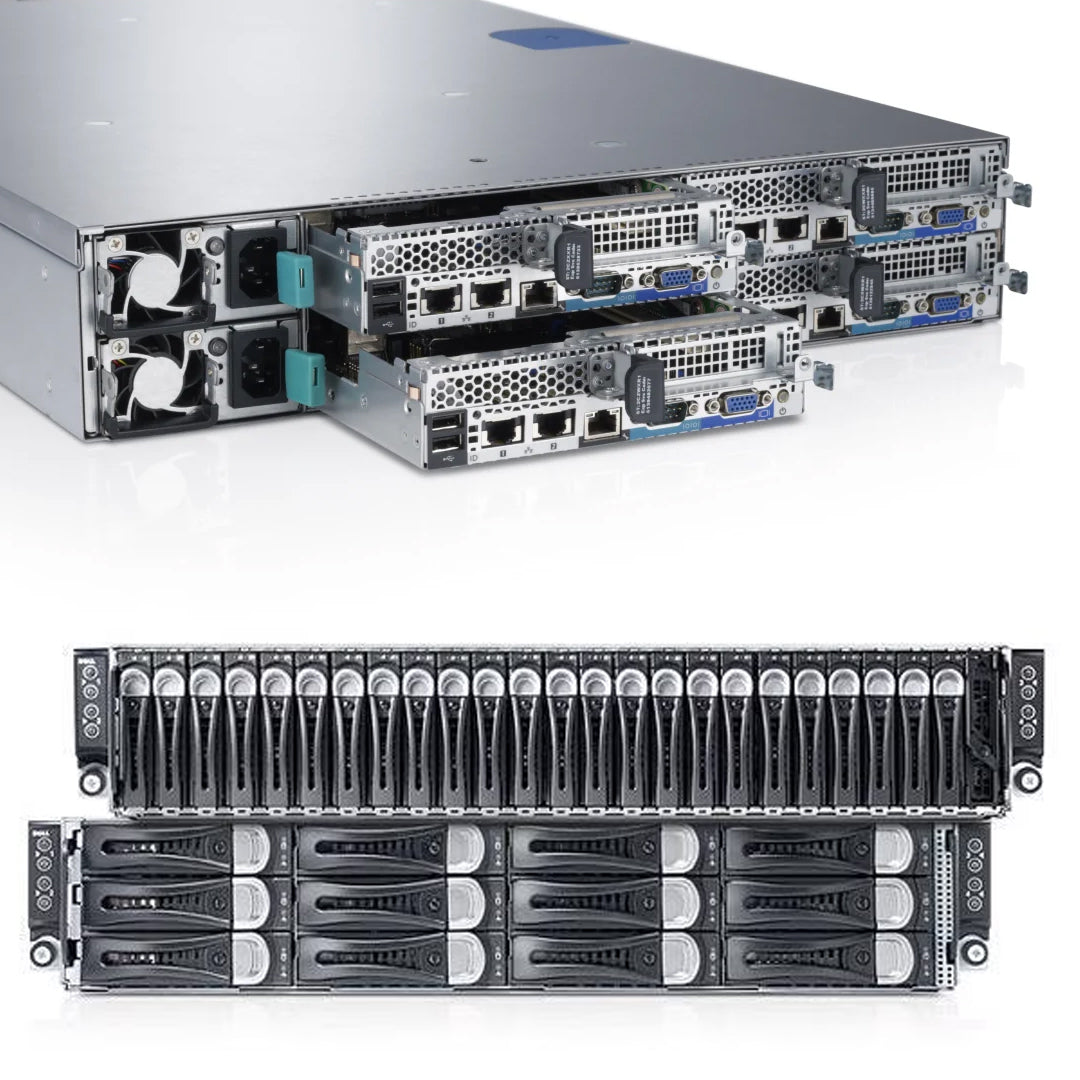

Support for up to two 2U nodes with additional PCIe expandability or four 1U nodes to maximize compute density lets you tailor resources as needed over time.
Each C6000 chassis supports up to 24x 2.5” or 12x 3.5” drives with multiple SATA and SAS options for up to 48TB of storage capacity. With the expander backplane option, dynamic drive assignment for 2.5” drives provides even more flexibility by zoning any number of drives to each node, giving nodes additional or fewer storage resources as workloads demand.
The x8 PCIe mezzanine slot in each node supports a variety of options for 1Gb and 10Gb Ethernet, InfiniBand, or additional drive controllers while the x16 PCIe slot adds even more flexibility, including connection to the 16-slot PowerEdge C410x PCIe expansion chassis — delivering up to 16.48 teraflops of added GPGPU-based computing performance.
The PowerEdge C6220II server is part of Dell’s hyper scale inspired PowerEdge C server line designed to bring the most compute power in the least amount of space with the least energy draw to lower operational costs. These servers have the right combination of what you need and nothing more. They are purpose-built servers designed for high performance computing, Web 2.0, hosting, data analytics, and cloud building. They are best for rack deployments, large homogenous cluster/cloud application environments where the software stack provides primary platform availability and resiliency. The PowerEdge C server line does not come with features you don’t need in a scale-out environment like comprehensive systems management, or broad enterprise storage.
| Feature | PowerEdge C6220 II technical specifications | |
|---|---|---|
| Chassis | 2U rack mount | |
| Processors | Up to four 2-socket servers, 4, 6, 8, 10 or 12 cores per processor Intel Xeon processor E5-2600 v2 product family, with L3 cache: up to 30MB | |
| Memory | 16 DIMM slots for up to 512GB per node: • 4GB/8GB/16GB (1.5V) DDR3 RDIMM (1866MT/s) • 32GB LV DDR3 RDIMM (1333MT/s) | • 4GB/8GB/16GB LV (1.35V) DDR3 RDIMM (1600MT/s) • 4GB LV DDR3 UDIMM (1600MT/s) • 32GB LV DDR3 LRDIMM (1600MT/s) |
| Chipset | Intel C602 chipset | |
| Video | Integrated AST2300 with up to 16MB video RAM | |
| Primary storage | Maximum internal storage: 48TB SATA or NL 48TB SAS | |
| Drive bays and hard drives | 24 x 2.5” or 12 x 3.5” hard drive options 2.5” SAS (15K): 146GB, 300GB 2.5” SAS (10K): 600GB, 900GB, 1.2TB 2.5” SATA: 500GB, 1TB 2.5” NL SAS (7.2K): 1TB 2.5” SATA SSD (eMLC): 100GB, 200GB, 400GB, 800GB | 2.5” SATA SSD (MLC): 120GB, 160GB, 240GB, 300GB, 480GB, 800GB 3.5” SATA (7.2K): 1TB, 2TB, 3TB, 4TB 3.5” SAS (15K): 600GB 3.5” NL SAS (7.2K): 1TB, 2TB, 3TB, 4TB |
| Connectivity | Intel Ethernet Controller i350, 2 x 1Gb Ethernet; 1 x 100Mb Ethernet dedicated management port | |
| USB ports | 2 external ports | |
| I/O slots | 1U-node version: 1 x8 mezzanine, 1 x16 half-height (low profile), half-length slot 2U-node version: 1 x8 mezzanine slot; 1 x16 full-height, half-length slot; 1 x16 full-height, full-length slot | |
| I/O adapter options | 1Gb Ethernet Intel i350 quad-port 1Gb adapter Intel 82580 ET quad-port 1Gb mezz 10Gb Ethernet Intel 82599 dual-port 10Gb DA/SFP + mezz Intel X520 dual-port 10Gb DA/SFP + mezz | InfiniBand Mellanox® ConnectX®-2 QDR dual-port mezz Mellanox ConnectX-3 FDR single-port mezz Dell X410 host interface card (HIC) for connection to the C410x |
| Drive and RAID controllers | Intel C602: SATA or SSD drives only LSI® 2008 6Gbs SAS mezzanine (optional) LSI 9265-8i 6Gbs SAS add-in controller (optional) | |
| Power supplies | Dual hot-plug redundant high-efficiency 1200W or 1400W power supplies | |
| Fans | Shared cooling with quick-disconnect 4x 60mm speed fans detectable with PWM control | |
| Operating systems | Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2 (includes Hyper-V®) Microsoft Windows Server 2008 R2 Enterprise x64 SP1 (includes Hyper-V) | Microsoft Windows® HPC Server 2008 R2 x64 SP1 Novell® SUSE® Linux Enterprise Server 11 Red Hat® Enterprise Linux® |
| Server management | Embedded BMC with IPMI 2.0 support with 1x 10/100 Mbps RJ45 connector Intel Node Manager 2.0 compliant | |
| Hypervisors | Citrix® XenServer® VMware® vSphere® ESXi™ | |
| Services (Availability varies by region. Please contact your sales representative for details.) | Data Center Consulting Services Rack Integration (U.S. only, not available in China) Rack Design Verification Configuration Services/CFI Onsite Deployment | Online Self Dispatch Basic Support ProSupport for IT ProSupport for Data Center 4-Hour Support Keep Your Hard Drive Enterprise Wide Contract IT Advisory Service Remote Advisory Service Certified Data Destruction Specialized Onsite Services |
| Dimensions and weight | Height: 8.68 cm (3.42 in) Width: 44.8 cm (17.6 in) Depth: 79.0 cm (31.1 in) | Weight (maximum configuration): 37 kg (81.6 lb) Weight (empty): 17.14 kg (37.8 lb) |
 Spec Sheet | Technical Guide |
